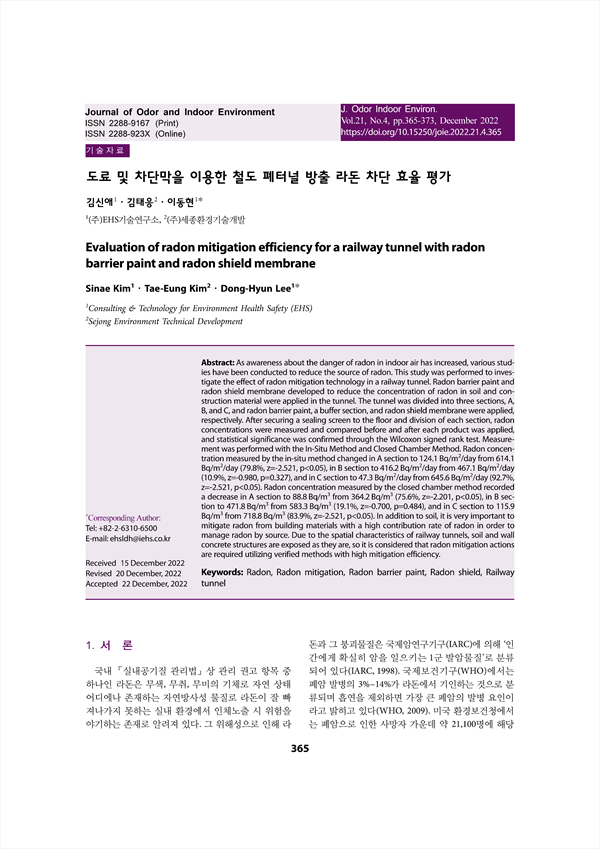

도료 및 차단막을 이용한 철도 폐터널 방출 라돈 차단 효율 평가 KCI 등재

Evaluation of radon mitigation efficiency for a railway tunnel with radon barrier paint and radon shield membrane

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/419308
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
실내환경 및 냄새 학회지 (Journal of Odor and Indoor Environment)
한국냄새환경학회 (Korean Society Of Odor Research And Engineering)
초록

As awareness about the danger of radon in indoor air has increased, various studies have been conducted to reduce the source of radon. This study was performed to investigate the effect of radon mitigation technology in a railway tunnel. Radon barrier paint and radon shield membrane developed to reduce the concentration of radon in soil and construction material were applied in the tunnel. The tunnel was divided into three sections, A, B, and C, and radon barrier paint, a buffer section, and radon shield membrane were applied, respectively. After securing a sealing screen to the floor and division of each section, radon concentrations were measured and compared before and after each product was applied, and statistical significance was confirmed through the Wilcoxon signed rank test. Measurement was performed with the In-Situ Method and Closed Chamber Method. Radon concentration measured by the in-situ method changed in A section to 124.1 Bq/m2/day from 614.1 Bq/m2/day (79.8%, z=-2.521, p<0.05), in B section to 416.2 Bq/m2/day from 467.1 Bq/m2/day (10.9%, z=-0.980, p=0.327), and in C section to 47.3 Bq/m2/day from 645.6 Bq/m2/day (92.7%, z=-2.521, p<0.05). Radon concentration measured by the closed chamber method recorded a decrease in A section to 88.8 Bq/m3 from 364.2 Bq/m3 (75.6%, z=-2.201, p<0.05), in B section to 471.8 Bq/m3 from 583.3 Bq/m3 (19.1%, z=-0.700, p=0.484), and in C section to 115.9 Bq/m3 from 718.8 Bq/m3 (83.9%, z=-2.521, p<0.05). In addition to soil, it is very important to mitigate radon from building materials with a high contribution rate of radon in order to manage radon by source. Due to the spatial characteristics of railway tunnels, soil and wall concrete structures are exposed as they are, so it is considered that radon mitigation actions are required utilizing verified methods with high mitigation efficiency.

목차
Abstract
1. 서 론
2. 연구방법
    2.1 연구대상 및 기간
    2.2 실증대상제품
    2.3 시험장소 구축 및 측정 방법
    2.4 결과 분석 방법
3. 결 과
    3.1 A구역 라돈차단도료 적용 결과
    3.2 B구역 버퍼구간 적용 결과
    3.3 C구역 라돈차단막 적용 결과
    3.4 시험결과 분석
4. 고찰 및 결론
감사의 글
References
저자
  • 김신애((주)EHS기술연구소) | Sinae Kim (Consulting & Technology for Environment Health Safety (EHS))
  • 김태응((주)세종환경기술개발) | Tae-Eung Kim (Sejong Environment Technical Development)
  • 이동현((주)EHS기술연구소) | Dong-Hyun Lee (Consulting & Technology for Environment Health Safety (EHS)) Corresponding Author
