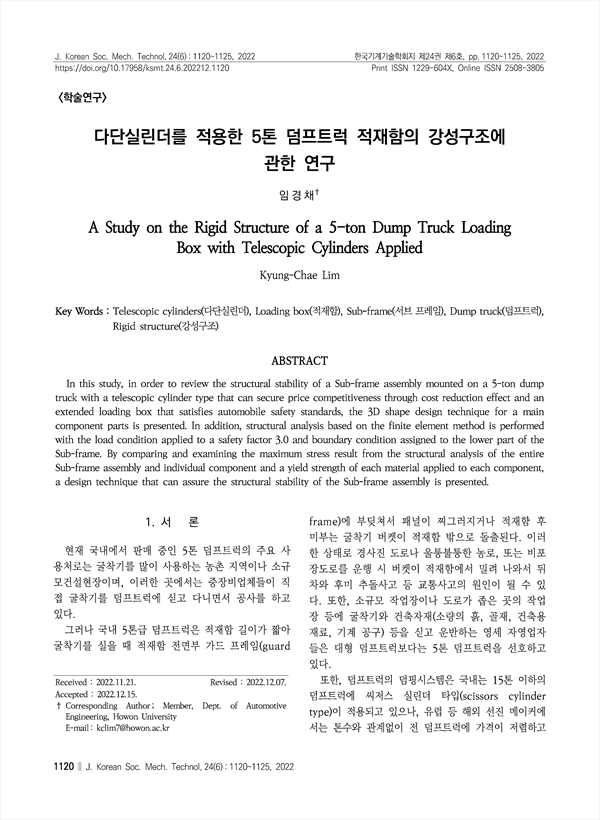

In this study, in order to review the structural stability of a Sub-frame assembly mounted on a 5-ton dump truck with a telescopic cylinder type that can secure price competitiveness through cost reduction effect and an extended loading box that satisfies automobile safety standards, the 3D shape design technique for a main component parts is presented. In addition, structural analysis based on the finite element method is performed with the load condition applied to a safety factor 3.0 and boundary condition assigned to the lower part of the Sub-frame. By comparing and examining the maximum stress result from the structural analysis of the entire Sub-frame assembly and individual component and a yield strength of each material applied to each component, a design technique that can assure the structural stability of the Sub-frame assembly is presented.

• 임경채 (호원대학교) | 임경채 Corresponding author
