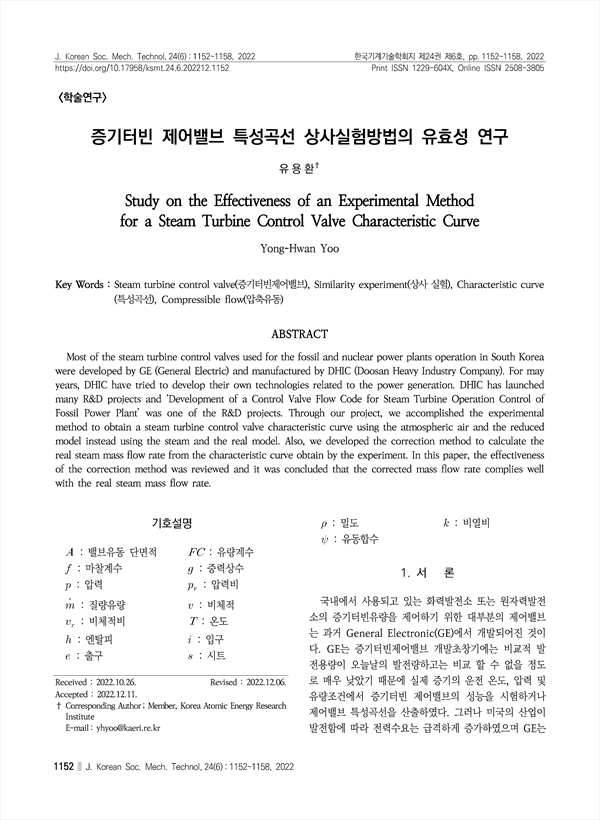

Most of the steam turbine control valves used for the fossil and nuclear power plants operation in South Korea were developed by GE (General Electric) and manufactured by DHIC (Doosan Heavy Industry Company). For may years, DHIC have tried to develop their own technologies related to the power generation. DHIC has launched many R&D projects and ‘Development of a Control Valve Flow Code for Steam Turbine Operation Control of Fossil Power Plant’ was one of the R&D projects. Through our project, we accomplished the experimental method to obtain a steam turbine control valve characteristic curve using the atmospheric air and the reduced model instead using the steam and the real model. Also, we developed the correction method to calculate the real steam mass flow rate from the characteristic curve obtain by the experiment. In this paper, the effectiveness of the correction method was reviewed and it was concluded that the corrected mass flow rate complies well with the real steam mass flow rate.

• 유용환 (한국원자력연구원) | Yong-Hwan Yoo Corresponding author
