고속 CAN 통신 와이어 에러 발생 시 통신 파형 분석 연구 KCI 등재

A Study on the Analysis of Communication Waveforms in the Case of High-Speed CAN Communication Wire

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/420289
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

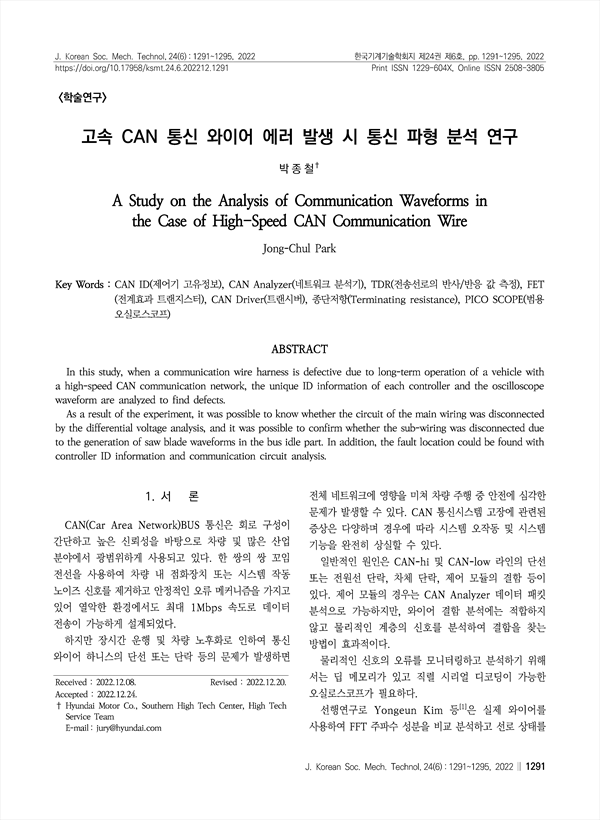

In this study, when a communication wire harness is defective due to long-term operation of a vehicle with a high-speed CAN communication network, the unique ID information of each controller and the oscilloscope waveform are analyzed to find defects. As a result of the experiment, it was possible to know whether the circuit of the main wiring was disconnected by the differential voltage analysis, and it was possible to confirm whether the sub-wiring was disconnected due to the generation of saw blade waveforms in the bus idle part. In addition, the fault location could be found with controller ID information and communication circuit analysis.

저자
  • 박종철(현대자동차(주)남부하이테크센터) | Jong-Chul Park Corresponding author
