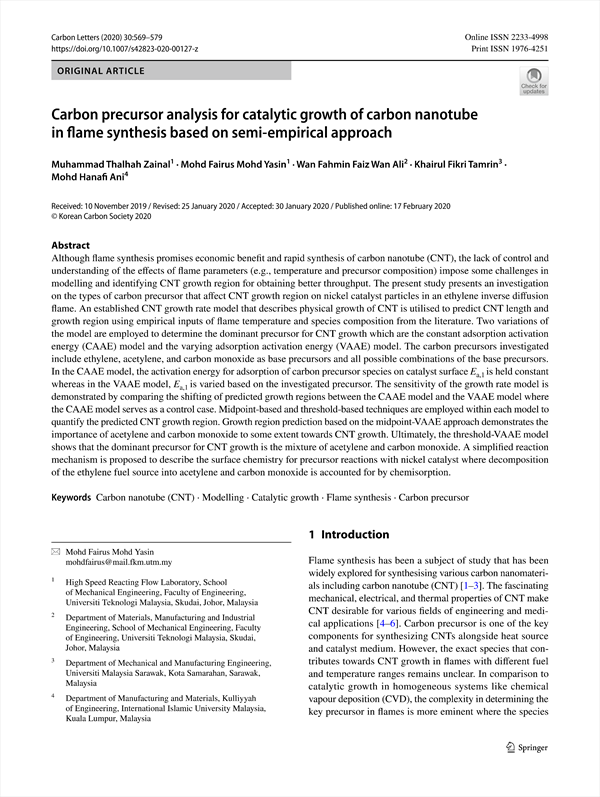

Although flame synthesis promises economic benefit and rapid synthesis of carbon nanotube (CNT), the lack of control and understanding of the effects of flame parameters (e.g., temperature and precursor composition) impose some challenges in modelling and identifying CNT growth region for obtaining better throughput. The present study presents an investigation on the types of carbon precursor that affect CNT growth region on nickel catalyst particles in an ethylene inverse diffusion flame. An established CNT growth rate model that describes physical growth of CNT is utilised to predict CNT length and growth region using empirical inputs of flame temperature and species composition from the literature. Two variations of the model are employed to determine the dominant precursor for CNT growth which are the constant adsorption activation energy (CAAE) model and the varying adsorption activation energy (VAAE) model. The carbon precursors investigated include ethylene, acetylene, and carbon monoxide as base precursors and all possible combinations of the base precursors. In the CAAE model, the activation energy for adsorption of carbon precursor species on catalyst surface E a,1 is held constant whereas in the VAAE model, E a,1 is varied based on the investigated precursor. The sensitivity of the growth rate model is demonstrated by comparing the shifting of predicted growth regions between the CAAE model and the VAAE model where the CAAE model serves as a control case. Midpoint-based and threshold-based techniques are employed within each model to quantify the predicted CNT growth region. Growth region prediction based on the midpoint-VAAE approach demonstrates the importance of acetylene and carbon monoxide to some extent towards CNT growth. Ultimately, the threshold-VAAE model shows that the dominant precursor for CNT growth is the mixture of acetylene and carbon monoxide. A simplified reaction mechanism is proposed to describe the surface chemistry for precursor reactions with nickel catalyst where decomposition of the ethylene fuel source into acetylene and carbon monoxide is accounted for by chemisorption.

    Abstract
    1 Introduction
    2 Modelling
        2.1 Growth rate model
        2.2 Prediction of CNT growth region
    3 Results and discussion
        3.1 Midpoint-based prediction of CNT growth region
        3.2 Threshold-based prediction of CNT growth region
    4 Conclusion
    Acknowledgements
    References

• Muhammad Thalhah Zainal(High Speed Reacting Flow Laboratory, School of Mechanical Engineering, Faculty of Engineering, Universiti Teknologi Malaysia)
• Mohd Fairus Mohd Yasin(High Speed Reacting Flow Laboratory, School of Mechanical Engineering, Faculty of Engineering, Universiti Teknologi Malaysia)
• Wan Fahmin Faiz Wan Ali(Department of Materials, Manufacturing and Industrial Engineering, School of Mechanical Engineering, Faculty of Engineering, Universiti Teknologi Malaysia, Skudai)
• Khairul Fikri Tamrin(Department of Mechanical and Manufacturing Engineering, Universiti Malaysia Sarawak)
• Mohd Hanafi Ani(Department of Manufacturing and Materials, Kulliyyah of Engineering, International Islamic University Malaysia)
