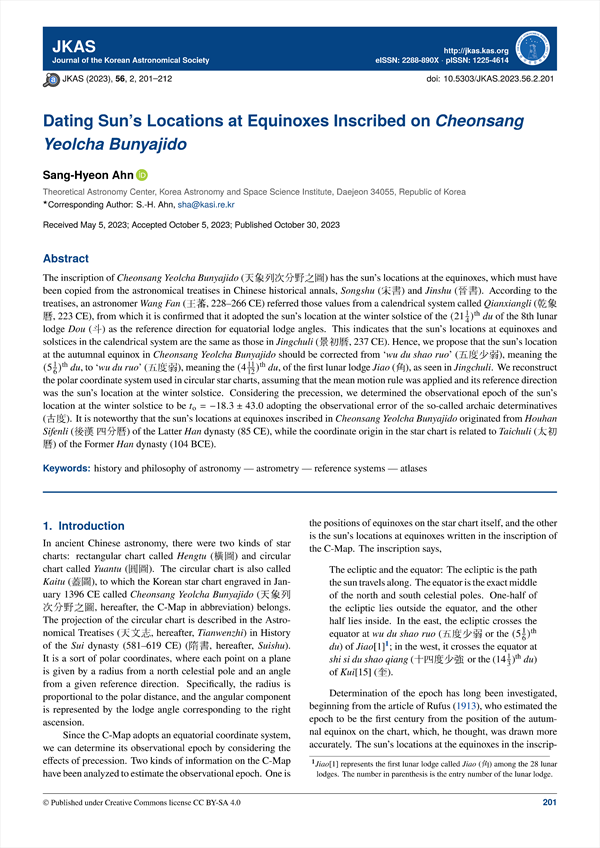

The inscription of Cheonsang Yeolcha Bunyajido (天象列次分野之圖) has the sun’s locations at the equinoxes, which must have been copied from the astronomical treatises in Chinese historical annals, Songshu (宋書) and Jinshu (晉書). According to the treatises, an astronomer Wang Fan (王蕃, 228–266 CE) referred those values from a calendrical system called Qianxiangli (乾象 曆, 223 CE), from which it is confirmed that it adopted the sun’s location at the winter solstice of the (211 4 )th du of the 8th lunar lodge Dou (斗) as the reference direction for equatorial lodge angles. This indicates that the sun’s locations at equinoxes and solstices in the calendrical system are the same as those in Jingchuli (景初曆, 237 CE). Hence, we propose that the sun’s location at the autumnal equinox in Cheonsang Yeolcha Bunyajido should be corrected from ‘wu du shao ruo’ (五度少弱), meaning the (51 6 )th du, to ‘wu du ruo’ (五度弱), meaning the (411 12 )th du, of the first lunar lodge Jiao (角), as seen in Jingchuli. We reconstruct the polar coordinate system used in circular star charts, assuming that the mean motion rule was applied and its reference direction was the sun’s location at the winter solstice. Considering the precession, we determined the observational epoch of the sun’s location at the winter solstice to be 𝑡o = −18.3 ± 43.0 adopting the observational error of the so-called archaic determinatives (古度). It is noteworthy that the sun’s locations at equinoxes inscribed in Cheonsang Yeolcha Bunyajido originated from Houhan Sifenli (後漢四分曆) of the Latter Han dynasty (85 CE), while the coordinate origin in the star chart is related to Taichuli (太初 曆) of the Former Han dynasty (104 BCE).

Introduction
Coordinate System of the C-Map Star Chart
Reference Point and Reference Direction
Sun's Location at the Winter Solstice
    Taichuli and Santongli
    Houhan Sifenli
    Jingchuli
    Qianxiangli and the C-Map Inscription
Obserational Epochs
Conclusions
    Summary
    Statistical Tests
Acknowledgments
References
Zu Chongzhi(祖沖之)'s Memorial on the Drift of the Winter Solstice

• Sang-Hyeon Ahn(Theoretical Astronomy Center, Korea Astronomy and Space Science Institute, Daejeon 34055, Republic of Korea) Corresponding author
