pp.187-193

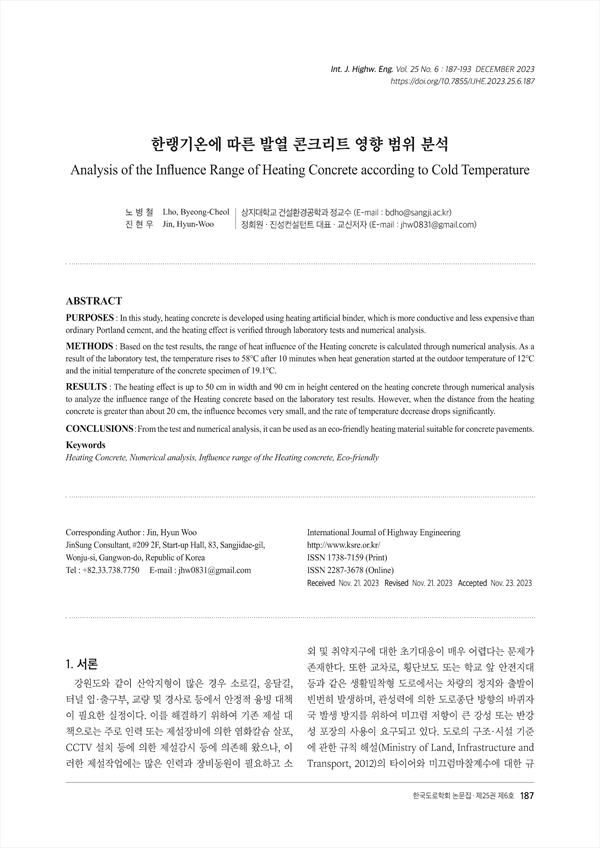

PURPOSES : In this study, heating concrete is developed using heating artificial binder, which is more conductive and less expensive than ordinary Portland cement, and the heating effect is verified through laboratory tests and numerical analysis. METHODS : Based on the test results, the range of heat influence of the Heating concrete is calculated through numerical analysis. As a result of the laboratory test, the temperature rises to 58℃ after 10 minutes when heat generation started at the outdoor temperature of 12℃ and the initial temperature of the concrete specimen of 19.1℃. RESULTS : The heating effect is up to 50 cm in width and 90 cm in height centered on the heating concrete through numerical analysis to analyze the influence range of the Heating concrete based on the laboratory test results. However, when the distance from the heating concrete is greater than about 20 cm, the influence becomes very small, and the rate of temperature decrease drops significantly. CONCLUSIONS : From the test and numerical analysis, it can be used as an eco-friendly heating material suitable for concrete pavements.
2. 기존연구
3. 발열 콘크리트 영향 범위 분석
3.1. 발열 콘크리트 제작 및 실내실험
3.2. 수치해석을 통한 열 해석 방법
3.3. 열 해석 결과 분석
4. 결론
감사의 글
