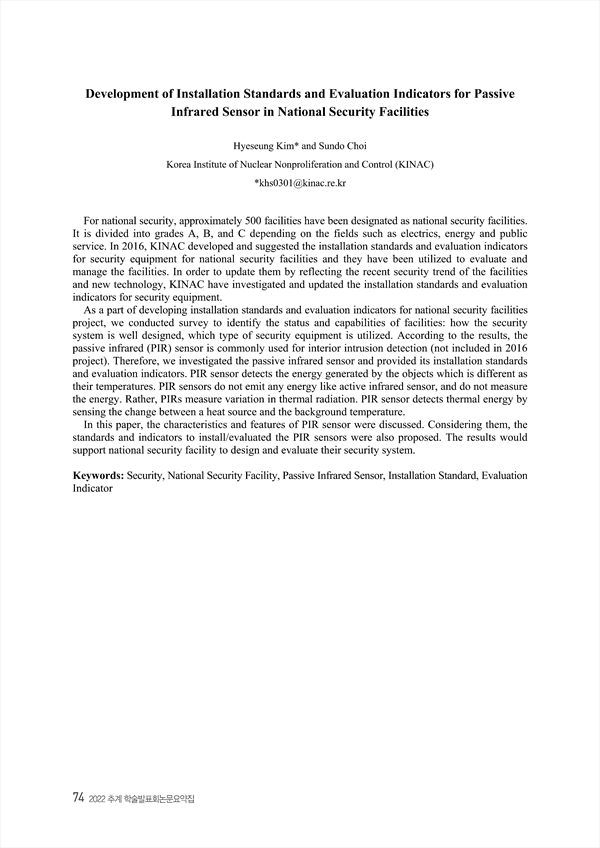

For national security, approximately 500 facilities have been designated as national security facilities. It is divided into grades A, B, and C depending on the fields such as electrics, energy and public service. In 2016, KINAC developed and suggested the installation standards and evaluation indicators for security equipment for national security facilities and they have been utilized to evaluate and manage the facilities. In order to update them by reflecting the recent security trend of the facilities and new technology, KINAC have investigated and updated the installation standards and evaluation indicators for security equipment. As a part of developing installation standards and evaluation indicators for national security facilities project, we conducted survey to identify the status and capabilities of facilities: how the security system is well designed, which type of security equipment is utilized. According to the results, the passive infrared (PIR) sensor is commonly used for interior intrusion detection (not included in 2016 project). Therefore, we investigated the passive infrared sensor and provided its installation standards and evaluation indicators. PIR sensor detects the energy generated by the objects which is different as their temperatures. PIR sensors do not emit any energy like active infrared sensor, and do not measure the energy. Rather, PIRs measure variation in thermal radiation. PIR sensor detects thermal energy by sensing the change between a heat source and the background temperature. In this paper, the characteristics and features of PIR sensor were discussed. Considering them, the standards and indicators to install/evaluated the PIR sensors were also proposed. The results would support national security facility to design and evaluate their security system.

• Hyeseung Kim(Korea Institute of Nuclear Nonproliferation and Control (KINAC)) Corresponding author
• Sundo Choi(Korea Institute of Nuclear Nonproliferation and Control (KINAC))
