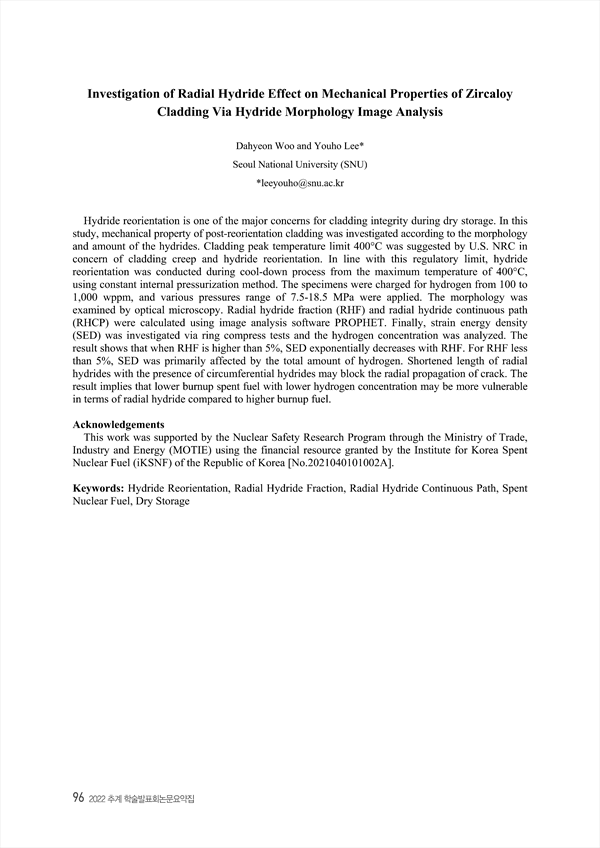

Investigation of Radial Hydride Effect on Mechanical Properties of Zircaloy Cladding Via Hydride Morphology Image Analysis
Hydride reorientation is one of the major concerns for cladding integrity during dry storage. In this study, mechanical property of post-reorientation cladding was investigated according to the morphology and amount of the hydrides. Cladding peak temperature limit 400°C was suggested by U.S. NRC in concern of cladding creep and hydride reorientation. In line with this regulatory limit, hydride reorientation was conducted during cool-down process from the maximum temperature of 400°C, using constant internal pressurization method. The specimens were charged for hydrogen from 100 to 1,000 wppm, and various pressures range of 7.5-18.5 MPa were applied. The morphology was examined by optical microscopy. Radial hydride fraction (RHF) and radial hydride continuous path (RHCP) were calculated using image analysis software PROPHET. Finally, strain energy density (SED) was investigated via ring compress tests and the hydrogen concentration was analyzed. The result shows that when RHF is higher than 5%, SED exponentially decreases with RHF. For RHF less than 5%, SED was primarily affected by the total amount of hydrogen. Shortened length of radial hydrides with the presence of circumferential hydrides may block the radial propagation of crack. The result implies that lower burnup spent fuel with lower hydrogen concentration may be more vulnerable in terms of radial hydride compared to higher burnup fuel.
