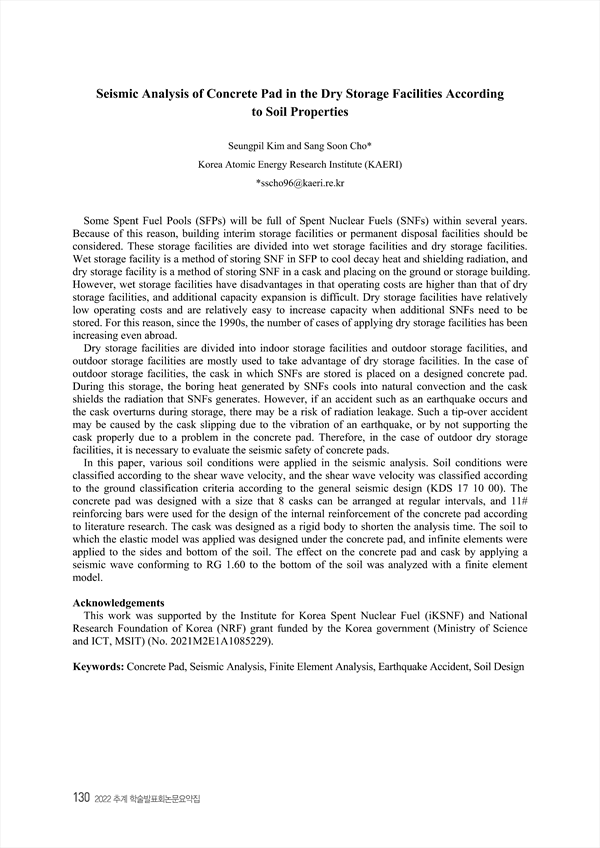

Seismic Analysis of Concrete Pad in the Dry Storage Facilities According to Soil Properties
p.130
Some Spent Fuel Pools (SFPs) will be full of Spent Nuclear Fuels (SNFs) within several years. Because of this reason, building interim storage facilities or permanent disposal facilities should be considered. These storage facilities are divided into wet storage facilities and dry storage facilities. Wet storage facility is a method of storing SNF in SFP to cool decay heat and shielding radiation, and dry storage facility is a method of storing SNF in a cask and placing on the ground or storage building. However, wet storage facilities have disadvantages in that operating costs are higher than that of dry storage facilities, and additional capacity expansion is difficult. Dry storage facilities have relatively low operating costs and are relatively easy to increase capacity when additional SNFs need to be stored. For this reason, since the 1990s, the number of cases of applying dry storage facilities has been increasing even abroad. Dry storage facilities are divided into indoor storage facilities and outdoor storage facilities, and outdoor storage facilities are mostly used to take advantage of dry storage facilities. In the case of outdoor storage facilities, the cask in which SNFs are stored is placed on a designed concrete pad. During this storage, the boring heat generated by SNFs cools into natural convection and the cask shields the radiation that SNFs generates. However, if an accident such as an earthquake occurs and the cask overturns during storage, there may be a risk of radiation leakage. Such a tip-over accident may be caused by the cask slipping due to the vibration of an earthquake, or by not supporting the cask properly due to a problem in the concrete pad. Therefore, in the case of outdoor dry storage facilities, it is necessary to evaluate the seismic safety of concrete pads. In this paper, various soil conditions were applied in the seismic analysis. Soil conditions were classified according to the shear wave velocity, and the shear wave velocity was classified according to the ground classification criteria according to the general seismic design (KDS 17 10 00). The concrete pad was designed with a size that 8 casks can be arranged at regular intervals, and 11# reinforcing bars were used for the design of the internal reinforcement of the concrete pad according to literature research. The cask was designed as a rigid body to shorten the analysis time. The soil to which the elastic model was applied was designed under the concrete pad, and infinite elements were applied to the sides and bottom of the soil. The effect on the concrete pad and cask by applying a seismic wave conforming to RG 1.60 to the bottom of the soil was analyzed with a finite element model.
