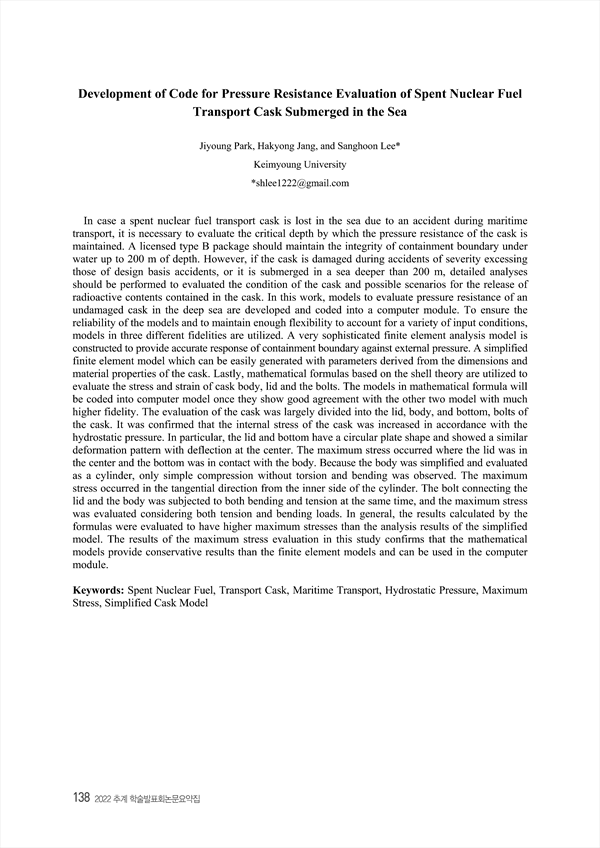

In case a spent nuclear fuel transport cask is lost in the sea due to an accident during maritime transport, it is necessary to evaluate the critical depth by which the pressure resistance of the cask is maintained. A licensed type B package should maintain the integrity of containment boundary under water up to 200 m of depth. However, if the cask is damaged during accidents of severity excessing those of design basis accidents, or it is submerged in a sea deeper than 200 m, detailed analyses should be performed to evaluated the condition of the cask and possible scenarios for the release of radioactive contents contained in the cask. In this work, models to evaluate pressure resistance of an undamaged cask in the deep sea are developed and coded into a computer module. To ensure the reliability of the models and to maintain enough flexibility to account for a variety of input conditions, models in three different fidelities are utilized. A very sophisticated finite element analysis model is constructed to provide accurate response of containment boundary against external pressure. A simplified finite element model which can be easily generated with parameters derived from the dimensions and material properties of the cask. Lastly, mathematical formulas based on the shell theory are utilized to evaluate the stress and strain of cask body, lid and the bolts. The models in mathematical formula will be coded into computer model once they show good agreement with the other two model with much higher fidelity. The evaluation of the cask was largely divided into the lid, body, and bottom, bolts of the cask. It was confirmed that the internal stress of the cask was increased in accordance with the hydrostatic pressure. In particular, the lid and bottom have a circular plate shape and showed a similar deformation pattern with deflection at the center. The maximum stress occurred where the lid was in the center and the bottom was in contact with the body. Because the body was simplified and evaluated as a cylinder, only simple compression without torsion and bending was observed. The maximum stress occurred in the tangential direction from the inner side of the cylinder. The bolt connecting the lid and the body was subjected to both bending and tension at the same time, and the maximum stress was evaluated considering both tension and bending loads. In general, the results calculated by the formulas were evaluated to have higher maximum stresses than the analysis results of the simplified model. The results of the maximum stress evaluation in this study confirms that the mathematical models provide conservative results than the finite element models and can be used in the computer module.
