Evaluation of Structural Integrity of Disposal Container Emplacement and Retrieval Device Under Lifting Condition
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/429955
p.202

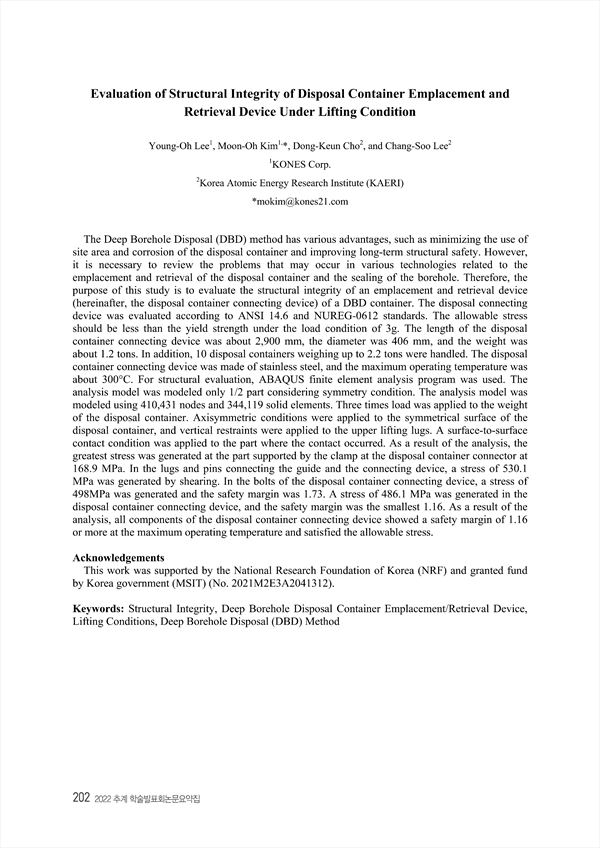

The Deep Borehole Disposal (DBD) method has various advantages, such as minimizing the use of site area and corrosion of the disposal container and improving long-term structural safety. However, it is necessary to review the problems that may occur in various technologies related to the emplacement and retrieval of the disposal container and the sealing of the borehole. Therefore, the purpose of this study is to evaluate the structural integrity of an emplacement and retrieval device (hereinafter, the disposal container connecting device) of a DBD container. The disposal connecting device was evaluated according to ANSI 14.6 and NUREG-0612 standards. The allowable stress should be less than the yield strength under the load condition of 3g. The length of the disposal container connecting device was about 2,900 mm, the diameter was 406 mm, and the weight was about 1.2 tons. In addition, 10 disposal containers weighing up to 2.2 tons were handled. The disposal container connecting device was made of stainless steel, and the maximum operating temperature was about 300°C. For structural evaluation, ABAQUS finite element analysis program was used. The analysis model was modeled only 1/2 part considering symmetry condition. The analysis model was modeled using 410,431 nodes and 344,119 solid elements. Three times load was applied to the weight of the disposal container. Axisymmetric conditions were applied to the symmetrical surface of the disposal container, and vertical restraints were applied to the upper lifting lugs. A surface-to-surface contact condition was applied to the part where the contact occurred. As a result of the analysis, the greatest stress was generated at the part supported by the clamp at the disposal container connector at 168.9 MPa. In the lugs and pins connecting the guide and the connecting device, a stress of 530.1 MPa was generated by shearing. In the bolts of the disposal container connecting device, a stress of 498MPa was generated and the safety margin was 1.73. A stress of 486.1 MPa was generated in the disposal container connecting device, and the safety margin was the smallest 1.16. As a result of the analysis, all components of the disposal container connecting device showed a safety margin of 1.16 or more at the maximum operating temperature and satisfied the allowable stress.
