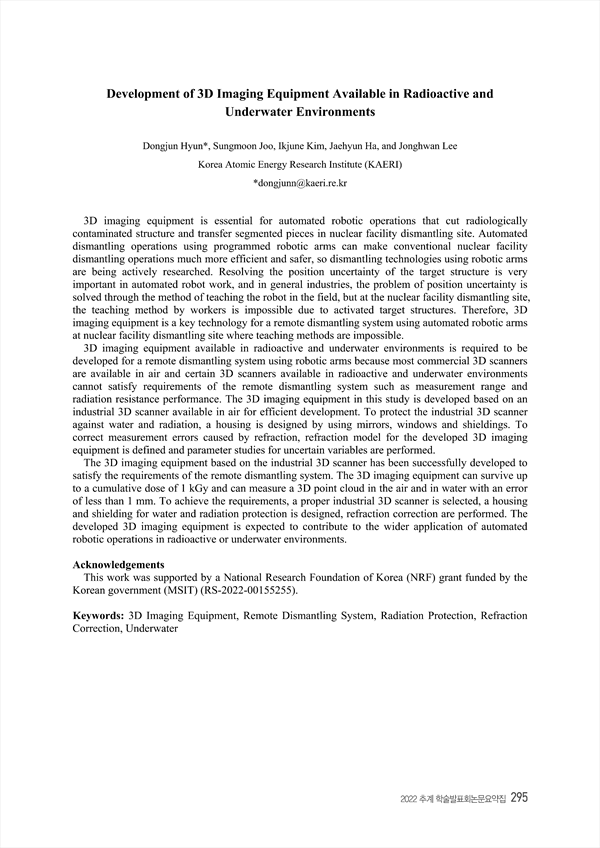

3D imaging equipment is essential for automated robotic operations that cut radiologically contaminated structure and transfer segmented pieces in nuclear facility dismantling site. Automated dismantling operations using programmed robotic arms can make conventional nuclear facility dismantling operations much more efficient and safer, so dismantling technologies using robotic arms are being actively researched. Resolving the position uncertainty of the target structure is very important in automated robot work, and in general industries, the problem of position uncertainty is solved through the method of teaching the robot in the field, but at the nuclear facility dismantling site, the teaching method by workers is impossible due to activated target structures. Therefore, 3D imaging equipment is a key technology for a remote dismantling system using automated robotic arms at nuclear facility dismantling site where teaching methods are impossible. 3D imaging equipment available in radioactive and underwater environments is required to be developed for a remote dismantling system using robotic arms because most commercial 3D scanners are available in air and certain 3D scanners available in radioactive and underwater environments cannot satisfy requirements of the remote dismantling system such as measurement range and radiation resistance performance. The 3D imaging equipment in this study is developed based on an industrial 3D scanner available in air for efficient development. To protect the industrial 3D scanner against water and radiation, a housing is designed by using mirrors, windows and shieldings. To correct measurement errors caused by refraction, refraction model for the developed 3D imaging equipment is defined and parameter studies for uncertain variables are performed. The 3D imaging equipment based on the industrial 3D scanner has been successfully developed to satisfy the requirements of the remote dismantling system. The 3D imaging equipment can survive up to a cumulative dose of 1 kGy and can measure a 3D point cloud in the air and in water with an error of less than 1 mm. To achieve the requirements, a proper industrial 3D scanner is selected, a housing and shielding for water and radiation protection is designed, refraction correction are performed. The developed 3D imaging equipment is expected to contribute to the wider application of automated robotic operations in radioactive or underwater environments.

• Dongjun Hyun(Korea Atomic Energy Research Institute (KAERI)) Corresponding author
• Sungmoon Joo(Korea Atomic Energy Research Institute (KAERI))
• Ikjune Kim(Korea Atomic Energy Research Institute (KAERI))
• Jaehyun Ha(Korea Atomic Energy Research Institute (KAERI))
• Jonghwan Lee(Korea Atomic Energy Research Institute (KAERI))
