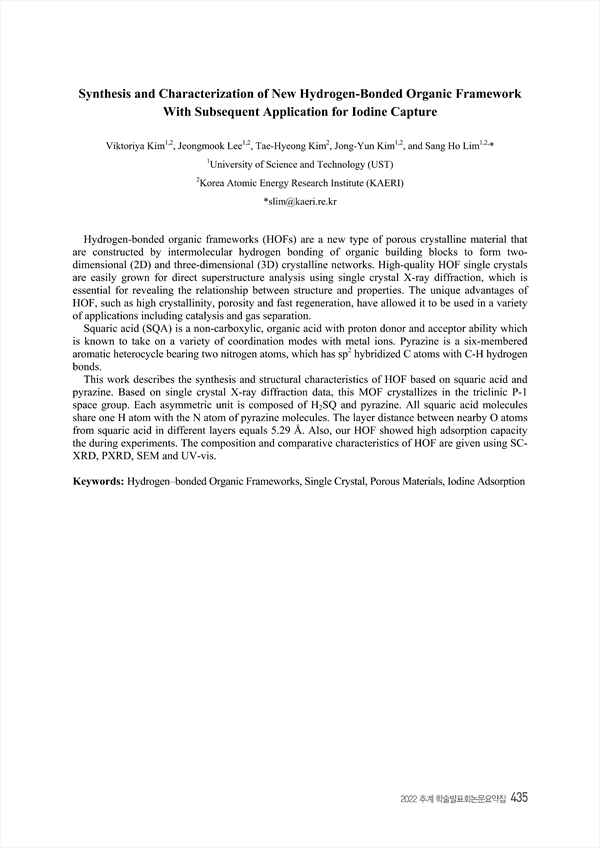

Synthesis and Characterization of New Hydrogen-Bonded Organic Framework With Subsequent Application for Iodine Capture
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/430302
p.435
Hydrogen-bonded organic frameworks (HOFs) are a new type of porous crystalline material that are constructed by intermolecular hydrogen bonding of organic building blocks to form twodimensional (2D) and three-dimensional (3D) crystalline networks. High-quality HOF single crystals are easily grown for direct superstructure analysis using single crystal X-ray diffraction, which is essential for revealing the relationship between structure and properties. The unique advantages of HOF, such as high crystallinity, porosity and fast regeneration, have allowed it to be used in a variety of applications including catalysis and gas separation. Squaric acid (SQA) is a non-carboxylic, organic acid with proton donor and acceptor ability which is known to take on a variety of coordination modes with metal ions. Pyrazine is a six-membered aromatic heterocycle bearing two nitrogen atoms, which has sp2 hybridized C atoms with C-H hydrogen bonds. This work describes the synthesis and structural characteristics of HOF based on squaric acid and pyrazine. Based on single crystal X-ray diffraction data, this MOF crystallizes in the triclinic P-1 space group. Each asymmetric unit is composed of H2SQ and pyrazine. All squaric acid molecules share one H atom with the N atom of pyrazine molecules. The layer distance between nearby O atoms from squaric acid in different layers equals 5.29 Å. Also, our HOF showed high adsorption capacity the during experiments. The composition and comparative characteristics of HOF are given using SCXRD, PXRD, SEM and UV-vis.
