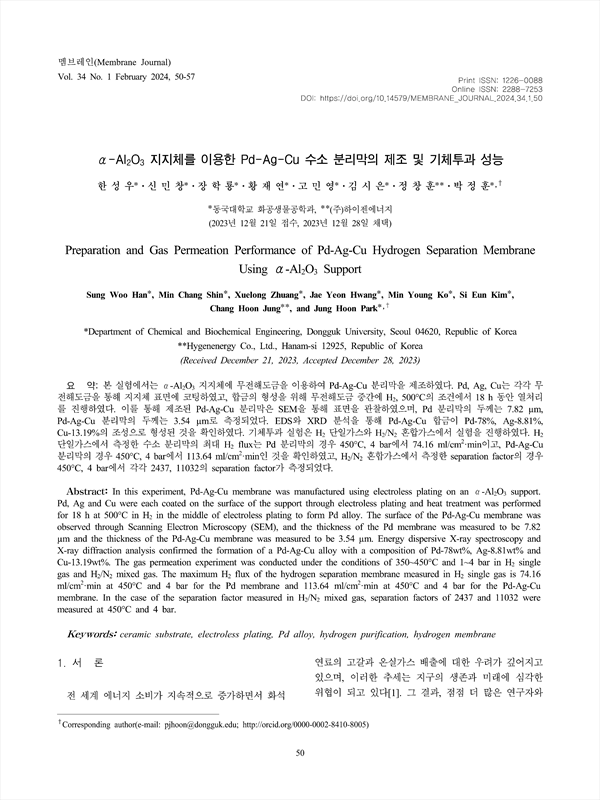

α-Al2O3 지지체를 이용한 Pd-Ag-Cu 수소 분리막의 제조 및 기체투과 성능 KCI 등재

Preparation and Gas Permeation Performance of Pd-Ag-Cu Hydrogen Separation Membrane Using α-Al2O3 Support

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/430521
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
멤브레인 (Membrane Journal)
한국막학회 (The Membrane Society Of Korea)
초록

본 실험에서는 α-Al2O3 지지체에 무전해도금을 이용하여 Pd-Ag-Cu 분리막을 제조하였다. Pd, Ag, Cu는 각각 무 전해도금을 통해 지지체 표면에 코팅하였고, 합금의 형성을 위해 무전해도금 중간에 H2, 500°C의 조건에서 18 h 동안 열처리 를 진행하였다. 이를 통해 제조된 Pd-Ag-Cu 분리막은 SEM을 통해 표면을 관찰하였으며, Pd 분리막의 두께는 7.82 μm, Pd-Ag-Cu 분리막의 두께는 3.54 μm로 측정되었다. EDS와 XRD 분석을 통해 Pd-Ag-Cu 합금이 Pd-78%, Ag-8.81%, Cu-13.19%의 조성으로 형성된 것을 확인하였다. 기체투과 실험은 H2 단일가스와 H2/N2 혼합가스에서 실험을 진행하였다. H2 단일가스에서 측정한 수소 분리막의 최대 H2 flux는 Pd 분리막의 경우 450°C, 4 bar에서 74.16 ml/cm2·min이고, Pd-Ag-Cu 분리막의 경우 450°C, 4 bar에서 113.64 ml/cm2·min인 것을 확인하였고, H2/N2 혼합가스에서 측정한 separation factor의 경우 450°C, 4 bar에서 각각 2437, 11032의 separation factor가 측정되었다.

In this experiment, Pd-Ag-Cu membrane was manufactured using electroless plating on an α-Al2O3 support. Pd, Ag and Cu were each coated on the surface of the support through electroless plating and heat treatment was performed for 18 h at 500°C in H2 in the middle of electroless plating to form Pd alloy. The surface of the Pd-Ag-Cu membrane was observed through Scanning Electron Microscopy (SEM), and the thickness of the Pd membrane was measured to be 7.82 μm and the thickness of the Pd-Ag-Cu membrane was measured to be 3.54 μm. Energy dispersive X-ray spectroscopy and X-ray diffraction analysis confirmed the formation of a Pd-Ag-Cu alloy with a composition of Pd-78wt%, Ag-8.81wt% and Cu-13.19wt%. The gas permeation experiment was conducted under the conditions of 350~450°C and 1~4 bar in H2 single gas and H2/N2 mixed gas. The maximum H2 flux of the hydrogen separation membrane measured in H2 single gas is 74.16 ml/cm2·min at 450°C and 4 bar for the Pd membrane and 113.64 ml/cm2·min at 450°C and 4 bar for the Pd-Ag-Cu membrane. In the case of the separation factor measured in H2/N2 mixed gas, separation factors of 2437 and 11032 were measured at 450°C and 4 bar.

목차
1. 서 론
2. 실 험
    2.1. α-Al2O3 중공사막 지지체 제조
    2.2. Pd-Ag-Cu 분리막 제조
    2.3. Pd-Ag-Cu 수소 분리막의 leak test와 기체투과실험 및 구조 분석
3. 실험 결과 및 고찰
    3.1. SEM, EDS, XRD 분석 결과
    3.2. Pd, Pd-Ag-Cu 분리막 기체투과 성능
4. 결 론
감 사
Reference
저자
  • 한성우(동국대학교 화공생물공학과) | Sung Woo Han (Department of Chemical and Biochemical Engineering, Dongguk University, Seoul 04620, Republic of Korea)
  • 신민창(동국대학교 화공생물공학과) | Min Chang Shin (Department of Chemical and Biochemical Engineering, Dongguk University, Seoul 04620, Republic of Korea)
  • 장학룡(동국대학교 화공생물공학과) | Xuelong Zhuang (Department of Chemical and Biochemical Engineering, Dongguk University, Seoul 04620, Republic of Korea)
  • 황재연(동국대학교 화공생물공학과) | Jae Yeon Hwang (Department of Chemical and Biochemical Engineering, Dongguk University, Seoul 04620, Republic of Korea)
  • 고민영(동국대학교 화공생물공학과) | Min Young Ko (Department of Chemical and Biochemical Engineering, Dongguk University, Seoul 04620, Republic of Korea)
  • 김시은(동국대학교 화공생물공학과) | Si Eun Kim (Department of Chemical and Biochemical Engineering, Dongguk University, Seoul 04620, Republic of Korea)
  • 정창훈((주)하이젠에너지) | Chang Hoon Jung (Hygenenergy Co., Ltd., Hanam-si 12925, Republic of Korea)
  • 박정훈(동국대학교 화공생물공학과) | Jung Hoon Park (Department of Chemical and Biochemical Engineering, Dongguk University, Seoul 04620, Republic of Korea) Corresponding author
