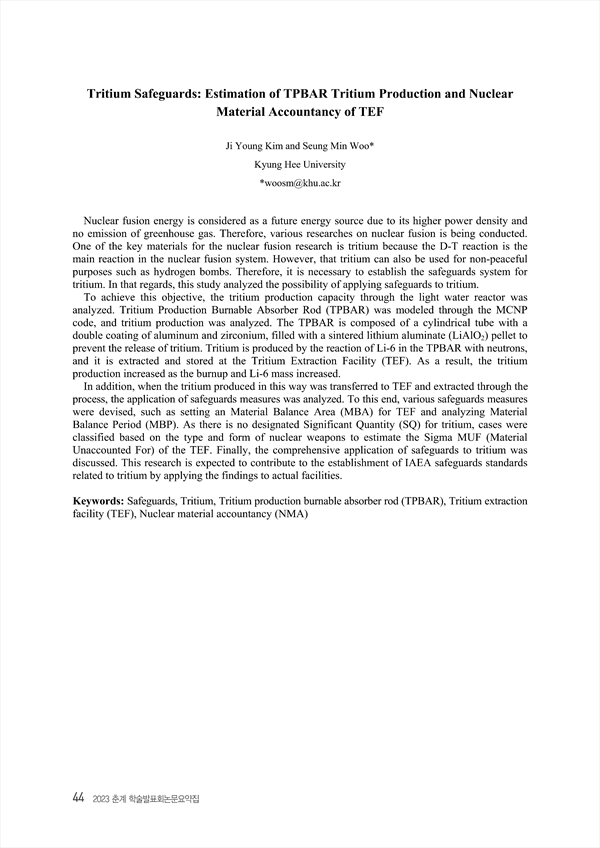

Tritium Safeguards: Estimation of TPBAR Tritium Production and Nuclear Material Accountancy of TEF
Nuclear fusion energy is considered as a future energy source due to its higher power density and no emission of greenhouse gas. Therefore, various researches on nuclear fusion is being conducted. One of the key materials for the nuclear fusion research is tritium because the D-T reaction is the main reaction in the nuclear fusion system. However, that tritium can also be used for non-peaceful purposes such as hydrogen bombs. Therefore, it is necessary to establish the safeguards system for tritium. In that regards, this study analyzed the possibility of applying safeguards to tritium. To achieve this objective, the tritium production capacity through the light water reactor was analyzed. Tritium Production Burnable Absorber Rod (TPBAR) was modeled through the MCNP code, and tritium production was analyzed. The TPBAR is composed of a cylindrical tube with a double coating of aluminum and zirconium, filled with a sintered lithium aluminate (LiAlO2) pellet to prevent the release of tritium. Tritium is produced by the reaction of Li-6 in the TPBAR with neutrons, and it is extracted and stored at the Tritium Extraction Facility (TEF). As a result, the tritium production increased as the burnup and Li-6 mass increased. In addition, when the tritium produced in this way was transferred to TEF and extracted through the process, the application of safeguards measures was analyzed. To this end, various safeguards measures were devised, such as setting an Material Balance Area (MBA) for TEF and analyzing Material Balance Period (MBP). As there is no designated Significant Quantity (SQ) for tritium, cases were classified based on the type and form of nuclear weapons to estimate the Sigma MUF (Material Unaccounted For) of the TEF. Finally, the comprehensive application of safeguards to tritium was discussed. This research is expected to contribute to the establishment of IAEA safeguards standards related to tritium by applying the findings to actual facilities.
