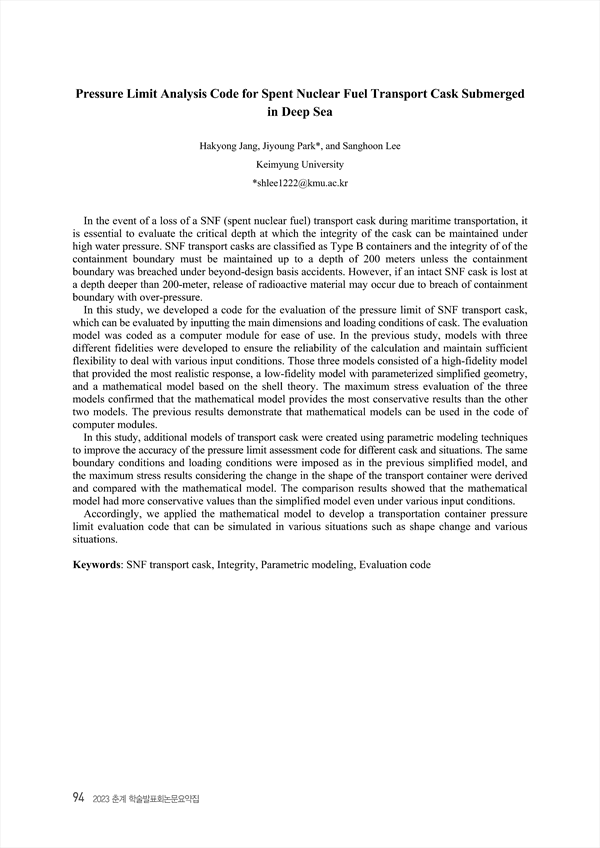

Pressure Limit Analysis Code for Spent Nuclear Fuel Transport Cask Submerged in Deep Sea
In the event of a loss of a SNF (spent nuclear fuel) transport cask during maritime transportation, it is essential to evaluate the critical depth at which the integrity of the cask can be maintained under high water pressure. SNF transport casks are classified as Type B containers and the integrity of of the containment boundary must be maintained up to a depth of 200 meters unless the containment boundary was breached under beyond-design basis accidents. However, if an intact SNF cask is lost at a depth deeper than 200-meter, release of radioactive material may occur due to breach of containment boundary with over-pressure. In this study, we developed a code for the evaluation of the pressure limit of SNF transport cask, which can be evaluated by inputting the main dimensions and loading conditions of cask. The evaluation model was coded as a computer module for ease of use. In the previous study, models with three different fidelities were developed to ensure the reliability of the calculation and maintain sufficient flexibility to deal with various input conditions. Those three models consisted of a high-fidelity model that provided the most realistic response, a low-fidelity model with parameterized simplified geometry, and a mathematical model based on the shell theory. The maximum stress evaluation of the three models confirmed that the mathematical model provides the most conservative results than the other two models. The previous results demonstrate that mathematical models can be used in the code of computer modules. In this study, additional models of transport cask were created using parametric modeling techniques to improve the accuracy of the pressure limit assessment code for different cask and situations. The same boundary conditions and loading conditions were imposed as in the previous simplified model, and the maximum stress results considering the change in the shape of the transport container were derived and compared with the mathematical model. The comparison results showed that the mathematical model had more conservative values than the simplified model even under various input conditions. Accordingly, we applied the mathematical model to develop a transportation container pressure limit evaluation code that can be simulated in various situations such as shape change and various situations.
