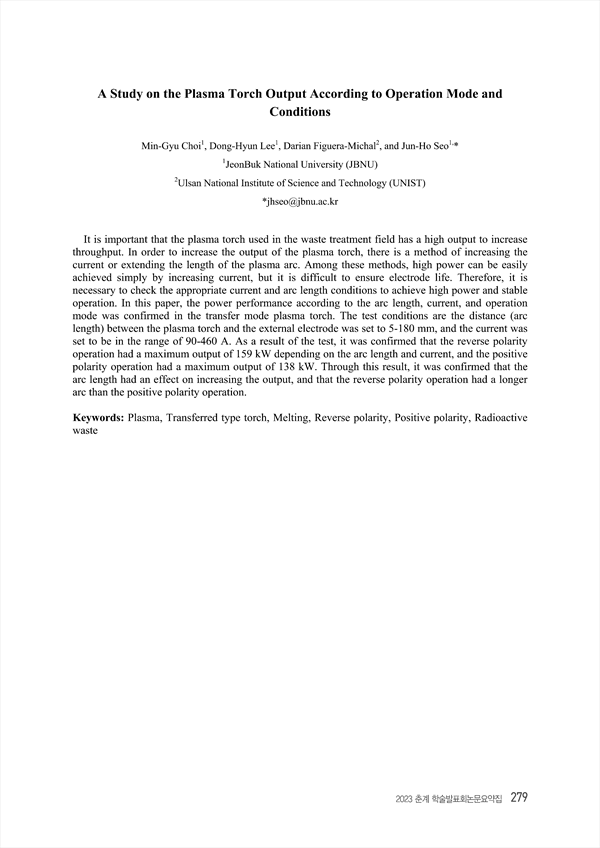

It is important that the plasma torch used in the waste treatment field has a high output to increase throughput. In order to increase the output of the plasma torch, there is a method of increasing the current or extending the length of the plasma arc. Among these methods, high power can be easily achieved simply by increasing current, but it is difficult to ensure electrode life. Therefore, it is necessary to check the appropriate current and arc length conditions to achieve high power and stable operation. In this paper, the power performance according to the arc length, current, and operation mode was confirmed in the transfer mode plasma torch. The test conditions are the distance (arc length) between the plasma torch and the external electrode was set to 5-180 mm, and the current was set to be in the range of 90-460 A. As a result of the test, it was confirmed that the reverse polarity operation had a maximum output of 159 kW depending on the arc length and current, and the positive polarity operation had a maximum output of 138 kW. Through this result, it was confirmed that the arc length had an effect on increasing the output, and that the reverse polarity operation had a longer arc than the positive polarity operation.

• Min-Gyu Choi(JeonBuk National University (JBNU))
• Dong-Hyun Lee(JeonBuk National University (JBNU))
• Darian Figuera-Michal(Ulsan National Institute of Science and Technology (UNIST))
• Jun-Ho Seo(JeonBuk National University (JBNU)) Corresponding author
