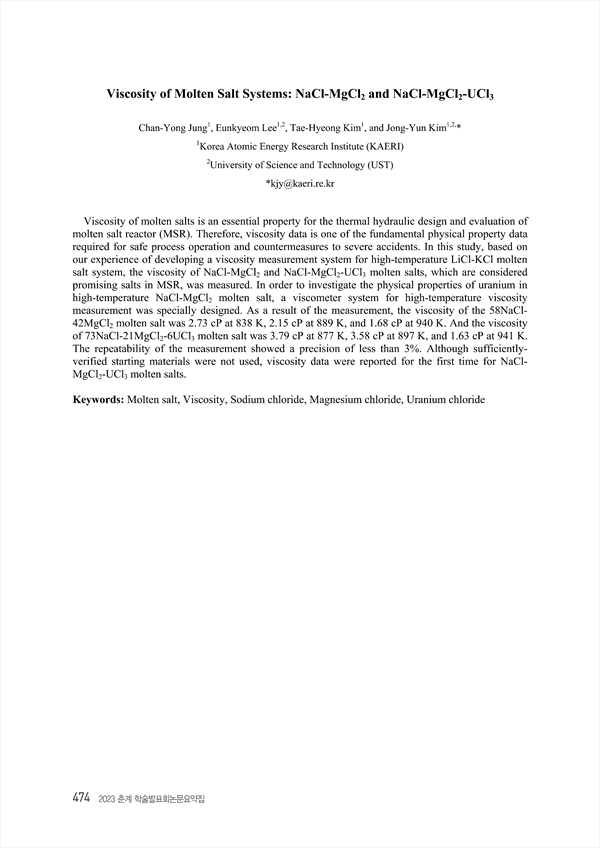

Viscosity of molten salts is an essential property for the thermal hydraulic design and evaluation of molten salt reactor (MSR). Therefore, viscosity data is one of the fundamental physical property data required for safe process operation and countermeasures to severe accidents. In this study, based on our experience of developing a viscosity measurement system for high-temperature LiCl-KCl molten salt system, the viscosity of NaCl-MgCl2 and NaCl-MgCl2-UCl3 molten salts, which are considered promising salts in MSR, was measured. In order to investigate the physical properties of uranium in high-temperature NaCl-MgCl2 molten salt, a viscometer system for high-temperature viscosity measurement was specially designed. As a result of the measurement, the viscosity of the 58NaCl- 42MgCl2 molten salt was 2.73 cP at 838 K, 2.15 cP at 889 K, and 1.68 cP at 940 K. And the viscosity of 73NaCl-21MgCl2-6UCl3 molten salt was 3.79 cP at 877 K, 3.58 cP at 897 K, and 1.63 cP at 941 K. The repeatability of the measurement showed a precision of less than 3%. Although sufficientlyverified starting materials were not used, viscosity data were reported for the first time for NaCl- MgCl2-UCl3 molten salts.

• Chan-Yong Jung(Korea Atomic Energy Research Institute (KAERI))
• Eunkyeom Lee(Korea Atomic Energy Research Institute (KAERI), University of Science and Technology (UST))
• Tae-Hyeong Kim(Korea Atomic Energy Research Institute (KAERI))
• Jong-Yun Kim(Korea Atomic Energy Research Institute (KAERI), University of Science and Technology (UST)) Corresponding author
