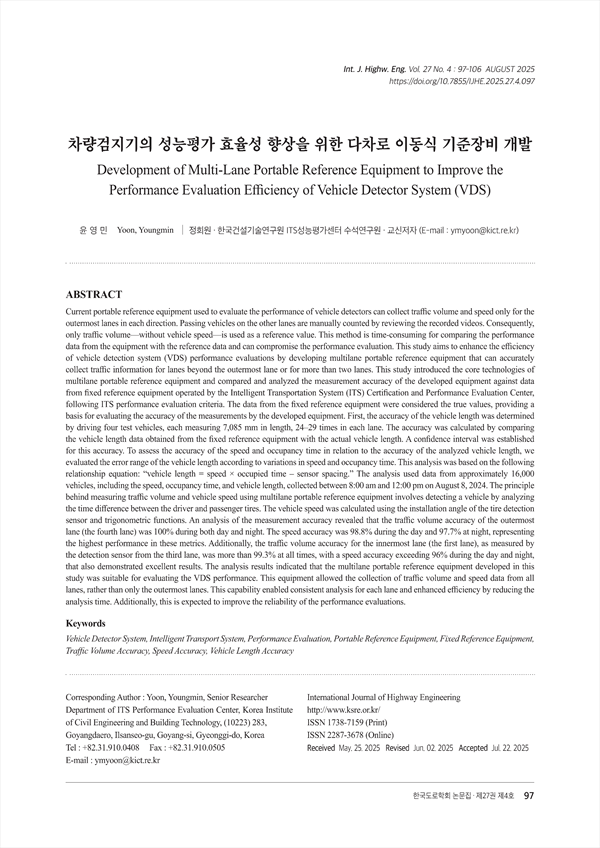

Current portable reference equipment used to evaluate the performance of vehicle detectors can collect traffic volume and speed only for the outermost lanes in each direction. Passing vehicles on the other lanes are manually counted by reviewing the recorded videos. Consequently, only traffic volume—without vehicle speed—is used as a reference value. This method is time-consuming for comparing the performance data from the equipment with the reference data and can compromise the performance evaluation. This study aims to enhance the efficiency of vehicle detection system (VDS) performance evaluations by developing multilane portable reference equipment that can accurately collect traffic information for lanes beyond the outermost lane or for more than two lanes. This study introduced the core technologies of multilane portable reference equipment and compared and analyzed the measurement accuracy of the developed equipment against data from fixed reference equipment operated by the Intelligent Transportation System (ITS) Certification and Performance Evaluation Center, following ITS performance evaluation criteria. The data from the fixed reference equipment were considered the true values, providing a basis for evaluating the accuracy of the measurements by the developed equipment. First, the accuracy of the vehicle length was determined by driving four test vehicles, each measuring 7,085 mm in length, 24–29 times in each lane. The accuracy was calculated by comparing the vehicle length data obtained from the fixed reference equipment with the actual vehicle length. A confidence interval was established for this accuracy. To assess the accuracy of the speed and occupancy time in relation to the accuracy of the analyzed vehicle length, we evaluated the error range of the vehicle length according to variations in speed and occupancy time. This analysis was based on the following relationship equation: “vehicle length = speed × occupied time – sensor spacing.” The analysis used data from approximately 16,000 vehicles, including the speed, occupancy time, and vehicle length, collected between 8:00 am and 12:00 pm on August 8, 2024. The principle behind measuring traffic volume and vehicle speed using multilane portable reference equipment involves detecting a vehicle by analyzing the time difference between the driver and passenger tires. The vehicle speed was calculated using the installation angle of the tire detection sensor and trigonometric functions. An analysis of the measurement accuracy revealed that the traffic volume accuracy of the outermost lane (the fourth lane) was 100% during both day and night. The speed accuracy was 98.8% during the day and 97.7% at night, representing the highest performance in these metrics. Additionally, the traffic volume accuracy for the innermost lane (the first lane), as measured by the detection sensor from the third lane, was more than 99.3% at all times, with a speed accuracy exceeding 96% during the day and night, that also demonstrated excellent results. The analysis results indicated that the multilane portable reference equipment developed in this study was suitable for evaluating the VDS performance. This equipment allowed the collection of traffic volume and speed data from all lanes, rather than only the outermost lanes. This capability enabled consistent analysis for each lane and enhanced efficiency by reducing the analysis time. Additionally, this is expected to improve the reliability of the performance evaluations.

ABSTRACT
1. 연구의 배경 및 목적
2. 관련문헌 고찰
3. 연구의 범위 및 방법
4. 연구 내용 및 결과
    4.1. 타이어 검지를 이용한 다차로 교통정보 수집기술
    4.2. 다차로 이동식 기준장비 정확도 분석 결과
    4.3. 고정식 기준장비 정확도 분석 결과
5. 결론
REFERENCES

• 윤영민(한국건설기술연구원 ITS성능평가센터 수석연구원) | Yoon Youngmin Corresponding author
