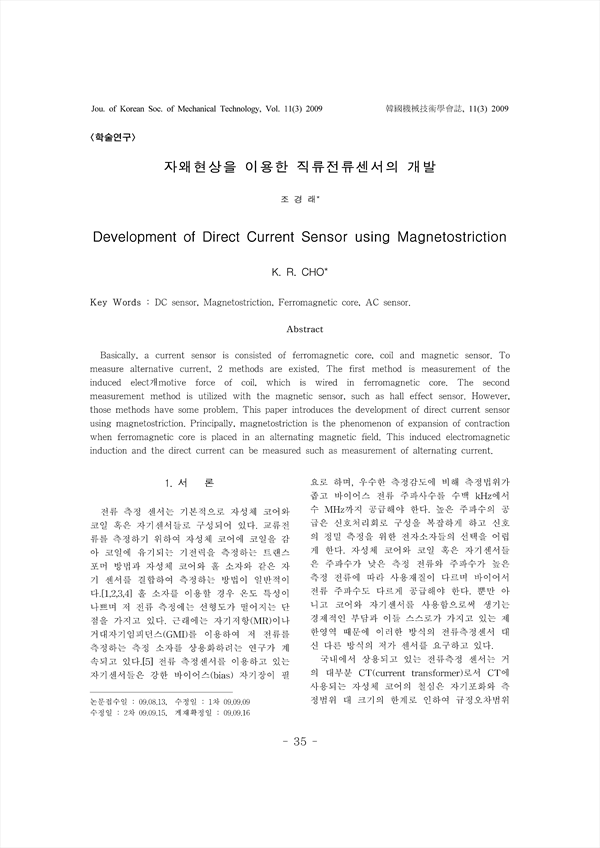

자왜현상을 이용한 직류전류센서의 개발 KCI 등재

Development of Direct Current Sensor using Magnetostriction

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/146971
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

asically, a current sensor is consisted of ferromagnetic core, coil and magnetic sensor. To measure alternative current, 2 methods are existed. The first method is measurement of the induced elect개motive force of coil, which is wired in ferromagnetic core. The second measurement method is utilized with the magnetic sensor, such as hall effect sensor. However, those methods have some problem. This paper introduces the development of direct current sensor using magnetostriction. Principally, magnetostriction is the phenomenon of expansion of contraction when ferromagnetic core is placed in an alternating magnetic field. This induced electromagnetic induction and the direct current can be measured such as measurement of alternating current.

목차
Abstract
 1. 서 론
 2. 전류센서의 종류 및 분석
  2.1 션트 저항
  2.2 변류기
  2.3 로고스키 코일
  2.4 홀센서
 3. 강자성체와 자왜성
  3.1 강자성체
  3.2 자기변형
 4. 실험 및 고찰
 5. 결 론
 참 고 문 헌
저자
  • 조경래 | K. R. CHO
