논문 상세보기

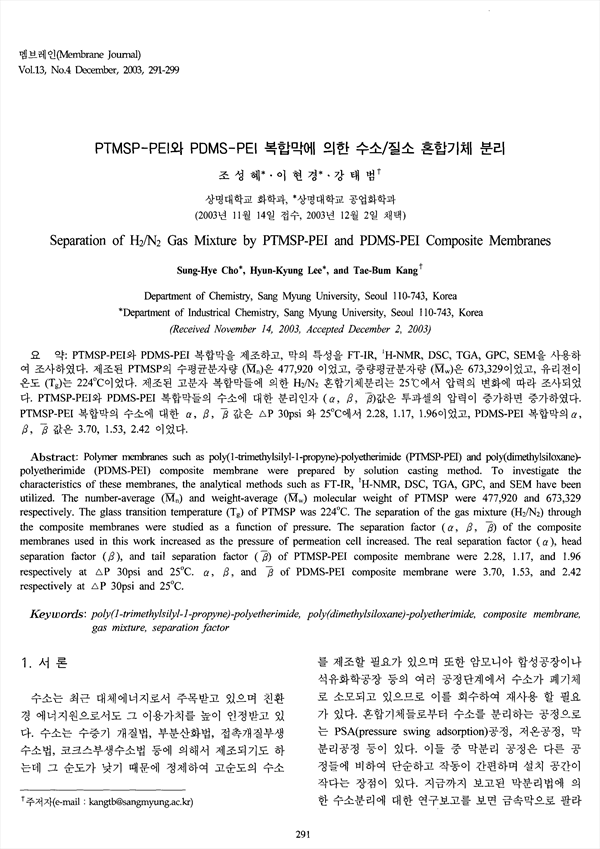

PTMSP-PEI와 PDMS-PEI 복합막을 제조하고, 막의 특성을 FT-IR, 1H-NMR, DSC, TGA, GPC, SEM을 사용하여 조사하였다. 제조된 PTMSP의 수평균분자량 (equation omitted)은 477,920 이었고, 중량평균분자량 (equation omitted)은 673,329이었고, 유리전이온도 (Tg)는 224℃이었다. 제조된 고분자 복합막들에 의한 H2/N2 혼합기체분리는 25℃에서 압력의 변화에 따라 조사되었다. PTMSP-PEI와 PDMS-PEI 복합막들의 수소에 대한 분리인자 (α, β, equation omitted)값은 투과셀의 압력이 증가하면 증가하였다. PTMSP-PEI 복합막의 수소에 대한 (α, β, equation omitted 값은 ΔP 30psi 와 25℃에서 2.28, 1.17, 1.96이었고, PDMS-PEI 복합막의 (α, β equation omitted 값은 3.70, 1.53, 2.42 이었다.
Polymer membranes such as poly(1-trimethylsilyl-1-propyne)-polyetherimide (PTMSP-PEI) and poly(dimethylsiloxane)- polyetherimide (PDMS-PEI) composite membrane were prepared by solution casting method. To investigate the characteristics of these membranes, the analytical methods such as FT-IR, 1H-NMR, DSC, TGA, GPC, and SEM have been utilized. The number-average (equation omitted) and weight-average (equation omitted) molecular weight of PTMSP were 477,920 and 673,329 respectively. The glass transition temperature (Tg) of PTMSP was 224℃. The separation of the gas mixture (H2/N2) through the composite membranes were studied as a function of pressure. The separation factor (α, β, quation omitted) of the composite membranes used in this work increased as the pressure of permeation cell increased. The real separation factor (α), head separation factor (β), and tail separation factor (equation omitted) of PTMSP-PEI composite membrane were 2.28, 1.17, and 1.96 respectively at ΔP 30psi and 25℃. (α, β and equation omitted of PDMS-PEI composite membrane were 3.70, 1.53, and 2.42 respectively at ΔP 30psi and 25℃.
