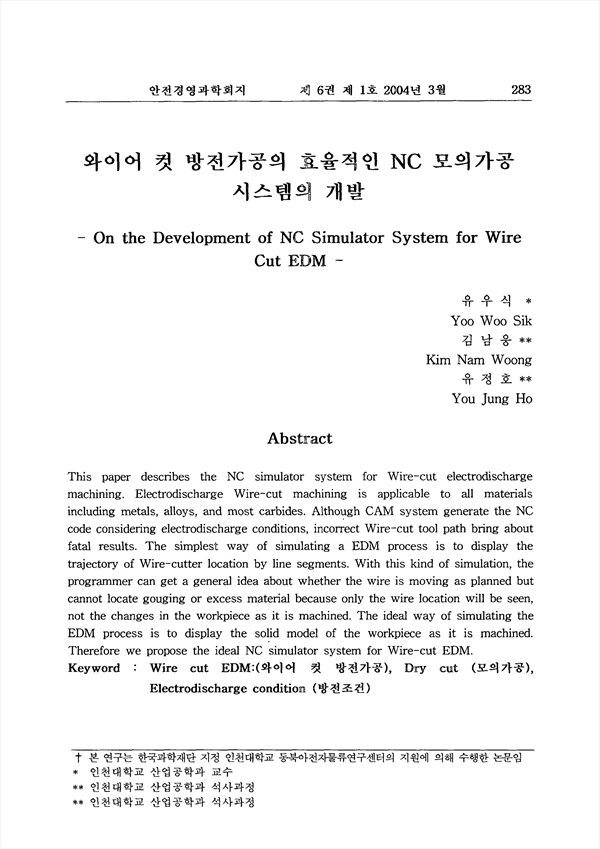

This paper describes the NC simulator system for Wire-cut electrodischarge machining. Electrodischarge Wire-cut machining is applicable to all materials including metals, alloys, and most carbides. Although CAM system generate the NC code considering electrodischarge conditions, incorrect Wire-cut tool path bring about fatal results. The simplest way of simulating a EDM process is to display the trajectory of Wire-cutter location by line segments. With this kind of simulation, the programmer can get a general idea about whether the wire is moving as planned but cannot locate gouging or excess material because only the wire location will be seen, not the changes in the workpiece as it is machined. The ideal way of simulating the EDM process is to display the solid model of the workpiece as it is machined. Therefore we propose the ideal NC simulator system for Wire-cut EDM.

• 유우식
• 김남웅
• 유정호
