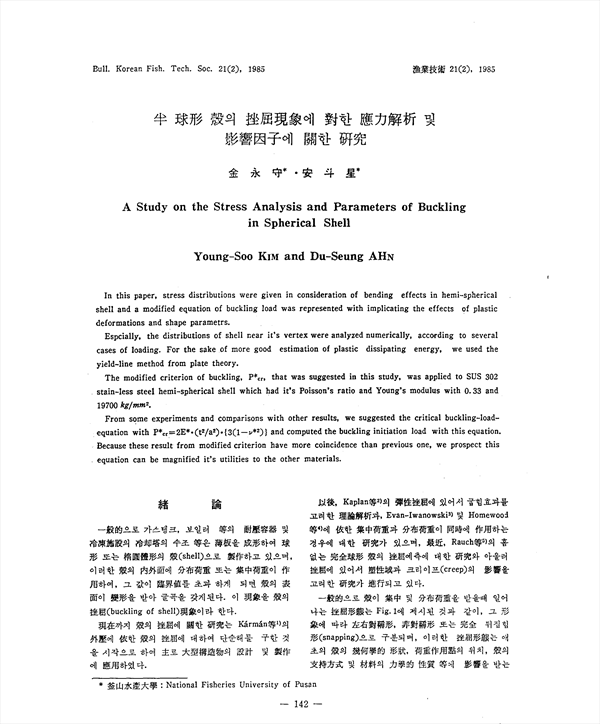

반 구형 각의 좌굴현상에 대한 응력해석 및 영향인자에 관한 연구 KCI 등재

A Study on the Stress Analysis and Parameters of Bucking in Spherical Shell

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/255733
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
수산해양기술연구 (Journal of the Korean Society of Fisheries and Ocean Technology)
한국수산해양기술학회(구 한국어업기술학회) (The Korean Society of Fisheriers and Ocean Technology)
초록

1. 반구형 각의 분포 및 집중하중에 의한 좌굴응력 해석은 변형된 각의 형상에 따라 타원체 각의 응력으로 해석함이 타당하다. 2. 일정 한계이상의 형상계수를 갖는 반 구형각에 대하여서는 재료상수를 형상계수의 승수로 고려한 수정된 임계좌굴 하중으로 탄소성 좌굴을 판정함이 더 양호한 결을 준다. 3. 탄소성 좌굴에 있어서 소모된 소성변형 에너지를 계산하기 위하여 항성변형 에너지를 계산하기 위하여 항상선를 따르는 에너지법을 이용하면 양호한 결과를 얻을 수 있다.

In this paper, stress distribution were given in consideration of bending effects in hemi-spherical shell and a modified equation of buckling load was represented with implicating the effects of plastic deformations and shape parameters. Especially, the distributions of shell near it's vertex were analyzed numerically, according to several cases of loading. For the sake of more good estimation of plastic dissipating energy, we used the yield-line method from plate theory. The modified criterion of bucking, P super(*) sub(cr), that was suggested in this study, was applied to SUS 302 stain-less steel hemi-spherical shell which had it's Poisson's ratio and Young's modulus with 0.33 and 19700 kg/mm2. From some experiments and comparisons with other results, 재 suggested the critical buckling-load-equation with P super(*) sub(cr)=2E super(*).(t super(2)/a super(2)).3(1-ν super(*2) and computed the buckling initiation load with this equation. Because these result from modified criterion have more coincidence than previous one, we prospect this equation can be magnified it's utilities to the other materials.

저자
  • 김영수 | Kim, Yeong-Su
  • 안두성 | An, Du-Seong
