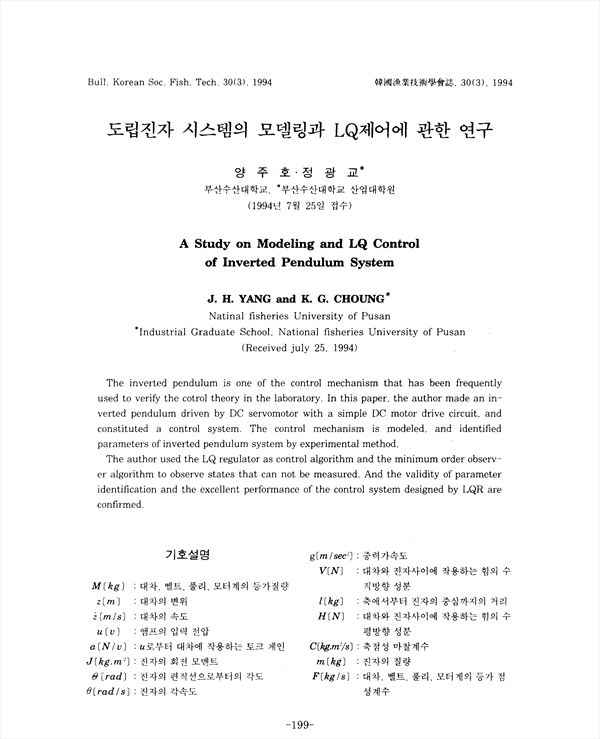

The inverted pendulum is one of the control mechanism that has been frequently used to verify the control theory in the laboratory. In this paper, the author made an inverted pendulum driven by DC servomotor with a simple DC motor drive circuit, and constituted a control system. The control mechanism is modeled, and identified parameters of inverted pendulum system by experimental method. The author used the LQ regulator as control algorithm and the minimum order observer algorithm to observe states that can not be measured. And the validity of parameter identification and the excellent performance of the control system designed by LQR are confirmed

• 양주호 | Yang, Ju-Ho
• 정광교 | Choung, Kwang-Gyo
