pp.299-308
기선권현망 어구를 대폭적으로 줄이여 어획 성능을 향상시킨 어구를 개량하고 자동화 조업시스템을 개발하기 위하여 현재 사용중인 어구를 1/2로 축소 제작한 시험어구를 가지고 양선간격과 예망속도의 변화에 따른 해상실험을 통하여 어구 각부의 망고와 수중형상을 측정.분석한 결과를 요약하면 다음과 같다. 1. 시험어구 각 부분의 망고는 양선간격과 예망 속도가 증가함에 따라 낮아지는 경향을 보였다. 2. 시험어구 A의 양선간격에 따른 오비기, 수비, 앞창, 자루 입구, 깔때기와 자루 뒤끝의 망고는 각각 10.8∼9.0, 12.0∼8.3, 12.6∼9.0, 10.4∼6.6, 4.6∼5.2, 8.8∼7.7m이었고, 각 부분의 전개율은 각각 36∼30, 21∼15, 31∼22, 80∼51, 80∼96, 59∼5l%로 나타났다. 3. 시험어구 B의 양선간격에 따른 오비기, 수비, 앞창, 자루 입구, 깔때기와 자루 뒤끝의 망고는 각각 9.1∼8.5, 9.8∼6.5, 11.2∼8.0, 11.0∼8.1, 4.7∼5.0, 7.0∼7.5m이었고, 각 부분의 전개율은 각각 30∼28, 18∼12, 27∼20, 85∼62, 87∼93, 47∼50%로 나타나 자루 입구와 깔대기 부분에서는 시험어구 A보다 다소 전개가 양호하였으나 다른 부분에서 약간 불량하였다. 4. 시험어구 A, B의 예망속도에 따른 각 부분의 망고는 양선간격에서와 거의 같았으나 변화폭은 다소 작았다. 5. 오비기와 수비 부분의 전개율이 30%정도로 매우 작기 때문에 포켓현상이 뚜렷하게 나타났다. 6. 모형어구 A의 수중형상은 양선간격과 예망속도가 증가에 따라 뒤 부분이 들리는 경향을 보인 반면에 시험어구 B는 거의 일정하였다. 7. 시험어구 A와 B의 예망깊이는 양선간격과 예망속도가 증가함에 따라 약간씩 얕아지는 현상을 보였는데, 뜸줄 쪽보다는 발줄 쪽이 뚜렷하다.

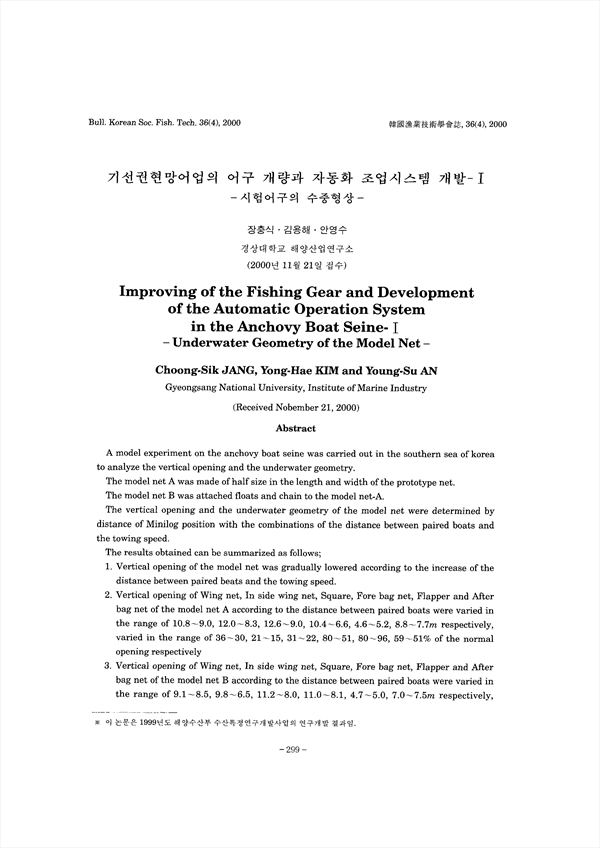

A model experiment on the anchovy boat seine was carried out in the southern sea of korea to analyze the vertical opening and the underwater geometry. The model net A was made of half size in the length and width of the prototype net. The model net B was attached floats and chain to the model net-A. The vertical opening and the underwater geometry of the model net were determined by distance of Minilog position with the combinations of the distance between paired boats and the towing speed. The results obtained can be summarized as follows; 1. Vertical opening of the model net was gradually lowered according to the increase of the distance between paired beats and the towing speed. 2. Vertical opening of Wing net, In side wing net, Square, Fore bag net, Flapper and After bag net of the model net A according to the distance between paired boats were varied in the range of 10.8~9.0, 12.0~8.3, 12.6~9.0, 10.4~6.6, 4.6~5.2, 8.8~7.7m respectively, varied in the range of 36~30, 21~15, 31~22, 80~51, 80~96, 59~51% of the normal opening respectively 3. Vertical opening of Wing net, In side wing net, Square, Fore bag net, Flapper and After bag net of the model net B according to the distance between paired boats were varied in the range of 9.1~8.5, 9.8~6.5, 11.2~8.0, 11.0~8.1, 4.7~5.0, 7.0~7.5m respectively, varied in the range of 30~28, 18~12, 27~20, 85~62, 87~93, 47~50% of the normal opening respectively 4. Vertical opening of each a part of the model net according to the towing speed was as same as the former. 5. Model net was appeared apparent the pocket shape, because Wing net and Inside wing net was opened 30% of the normal opening. 6. The bosom and the bag net of the model net A were risen up to the upper lazer, this phenomenon was more apparent as the distance between paired boats and the towing speed increase, but the model net B was almost constant. 7. Working depth of the model net was gradually hallowed according to the increase of the distance between paired boats and the towing speed.
