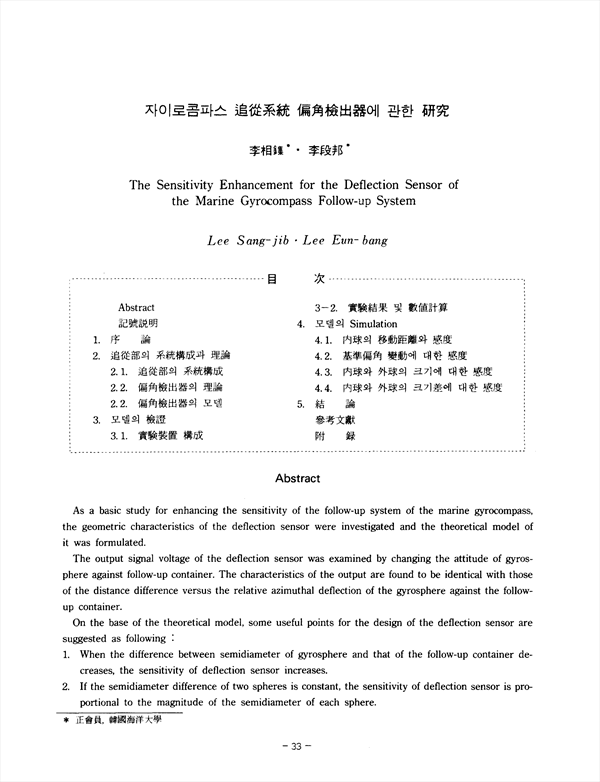

As a basic study for enhancing the sensitivity of the follow-up system of the marine gyrocompass, the geometric characteristics of the deflection sensor were investigated and the theoretical model of it was formulated. The output signal voltage of the deflection sensor was esamined by changing the attitude of gyrosphere against follow-up container. The characteristics of the output are found to be indentical with those of the distance difference versus the relative azimuthal deflection of the gyrosphere against the follow up container. On the base of the theoretical model, some useful points for the design of the deflection sensor are suggested as following : 1. When the difference between semidiamter of gyrophere and that of the follow-up container decreases, the sensitivity of deflection sensor increases. 2. If the semidiameter difference of two spheres is constant, the sensitivity of deflection sensor is proportional to the magnitude of the semidiamter of each sphere. 3. The farther the gyrosphere is deviated from the center of follow-up container, the higher the sensitivity of deflection sensor is. 4. It is recommendable that the value of the datum deflection of the electrodes on the gyrosphere should be within the range between 4˚ and 16˚deviated from north-south line.

• 이상집
• 이은방
