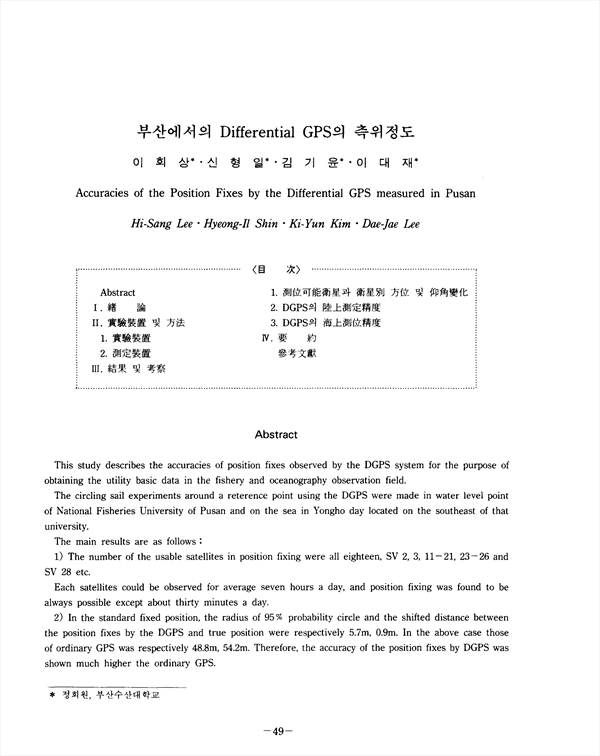

부산에서의 Diferential GPS의 측위정도 KCI 등재

Accuracies of the Position Fixes by the Differential GPS measured in Pusan

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/260151
서비스가 종료되어 열람이 제한될 수 있습니다.
Journal of Korean Navigation and Port Reserch (한국항해항만학회지)
한국항해항만학회 (Korean Institute of Navigation and Port Research)
초록

This study describes the accuracies of position fixes observed by the DGPS systems for the purpose of obtaining the utility basic data in the fishery and oceanography observation field. The circling sail experiments around a reterence point using the DGPS were made in water level point of National Fisheries University of Pusan and on the sea in Yongho day located on the southeast of that university. The main results are as follows ; 1) The number of the usable satellites in position fixing were all eighteen, SV 2, 3, 11-21, 23-26 and SV 28 etc. Each satellites could be observed for average seven hours a day, and position fixing was found to be always possible except about thirty minutes a day. 2) In the standard fixed position, the radius of 95% probability circle and the shifted distance between the position fixes by the DGPS and true position were respectively 5.7m, 0.9m. In the above case those of ordinary GPS was respectively 48.8, 54.2m. Therefore, the accuracy of the position fixes by DGPS was shown much higher the ordinary GPS. 3) At land, the shifted distance between the center of traces in the circling sail experiment of 15m ra-dius by DGPS and the reference position amounted to 5.5m and observed radius of circling traces was 17.5m. other than 15m. At sea, that distance the center of traces in circling experiment of 20m radius by the DGPS and the reference position amounted to 3.6m and observed radius of circling traces was 19.7m, other than 20m. Therefore, the utility of the circling experiment to obtain the accurate position fixes by the DGPS was found to be very high.

저자
  • 이희상
  • 신형일
  • 김기윤
  • 이대재
