pp.31-38

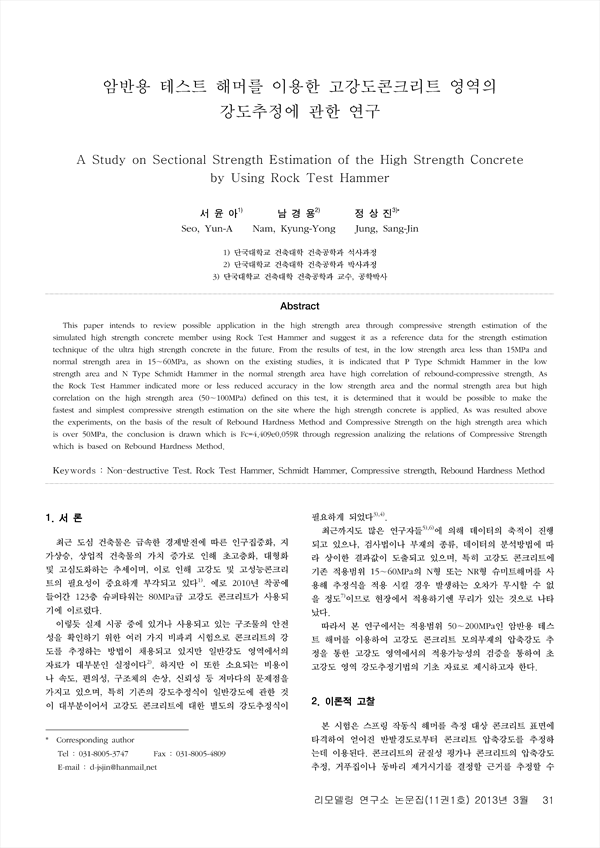

This paper intends to review possible application in the high strength area through compressive strength estimation of the simulated high strength concrete member using Rock Test Hammer and suggest it as a reference data for the strength estimation technique of the ultra high strength concrete in the future. From the results of test, in the low strength area less than 15MPa and normal strength area in 15∼60MPa, as shown on the existing studies, it is indicated that P Type Schmidt Hammer in the low strength area and N Type Schmidt Hammer in the normal strength area have high correlation of rebound-compressive strength. As the Rock Test Hammer indicated more or less reduced accuracy in the low strength area and the normal strength area but high correlation on the high strength area (50∼100MPa) defined on this test, it is determined that it would be possible to make the fastest and simplest compressive strength estimation on the site where the high strength concrete is applied. As was resulted above the experiments, on the basis of the result of Rebound Hardness Method and Compressive Strength on the high strength area which is over 50MPa, the conclusion is drawn which is Fc=4.409e0.059R through regression analizing the relations of Compressive Strength which is based on Rebound Hardness Method.
