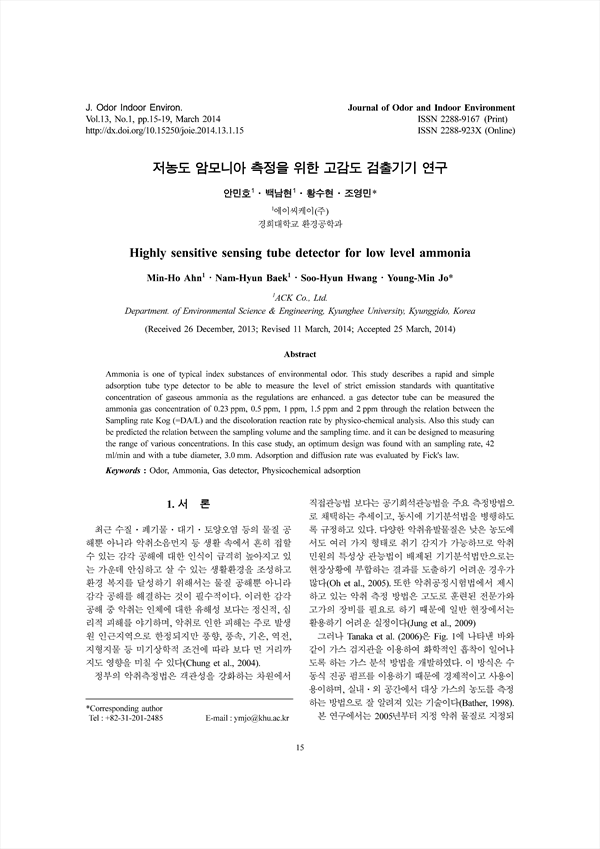

Ammonia is one of typical index substances of environmental odor. This study describes a rapid and simpleadsorption tube type detector to be able to measure the level of strict emission standards with quantitativeconcentration of gaseous ammonia as the regulations are enhanced. a gas detector tube can be measured theammonia gas concentration of 0.23ppm, 0.5ppm, 1ppm, 1.5ppm and 2ppm through the relation between theSampling rate Kog (=DA/L) and the discoloration reaction rate by physico-chemical analysis. Also this study canbe predicted the relation between the sampling volume and the sampling time. and it can be designed to measuringthe range of various concentrations. In this case study, an optimum design was found with an sampling rate, 42ml/min and with a tube diameter, 3.0mm. Adsorption and diffusion rate was evaluated by Fick's law.

• 안민호(에이씨케이(주)) | Min-Ho Ahn
• 백남현(에이씨케이(주)) | Nam-Hyun Baek
• 황수현(경희대학교 환경공학과) | Soo-Hyun Hwang
• 조영민(경희대학교 환경공학과) | Young-Min Jo Corresponding author
