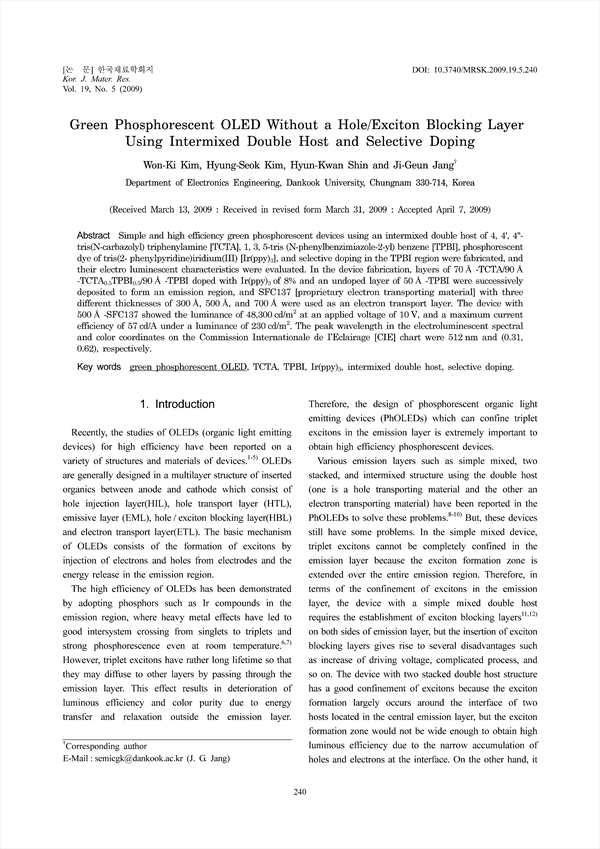

Simple and high efficiency green phosphorescent devices using an intermixed double host of 4, 4', 4"-tris(N-carbazolyl) triphenylamine [TCTA], 1, 3, 5-tris (N-phenylbenzimiazole-2-yl) benzene [TPBI], phosphorescent dye of tris(2-phenylpyridine)iridium(III) [Ir(ppy)3], and selective doping in the TPBI region were fabricated, and their electro luminescent characteristics were evaluated. In the device fabrication, layers of 70Å-TCTA/90Å-TCTA[0.5TPBI0.5/90Å-TPBI doped with Ir(ppy)3 of 8% and an undoped layer of 50Å-TPBI were successively deposited to form an emission region, and SFC137 [proprietary electron transporting material] with three different thicknesses of 300Å, 500Å, and 700Å were used as an electron transport layer. The device with 500Å-SFC137 showed the luminance of 48,300 cd/m2 at an applied voltage of 10 V, and a maximum current efficiency of 57 cd/A under a luminance of 230 cd/m2. The peak wavelength in the electroluminescent spectral and color coordinates on the Commission Internationale de I'Eclairage [CIE] chart were 512 nm and (0.31, 0.62), respectively.

• Kim, Won-Ki
• Kim, Hyung-Seok | Kim, Hyung-Seok
• Shin, Hyun-Kwan | Shin, Hyun-Kwan
• Jang, Ji-Geun | Jang, Ji-Geun
