논문 상세보기
pp.397-402

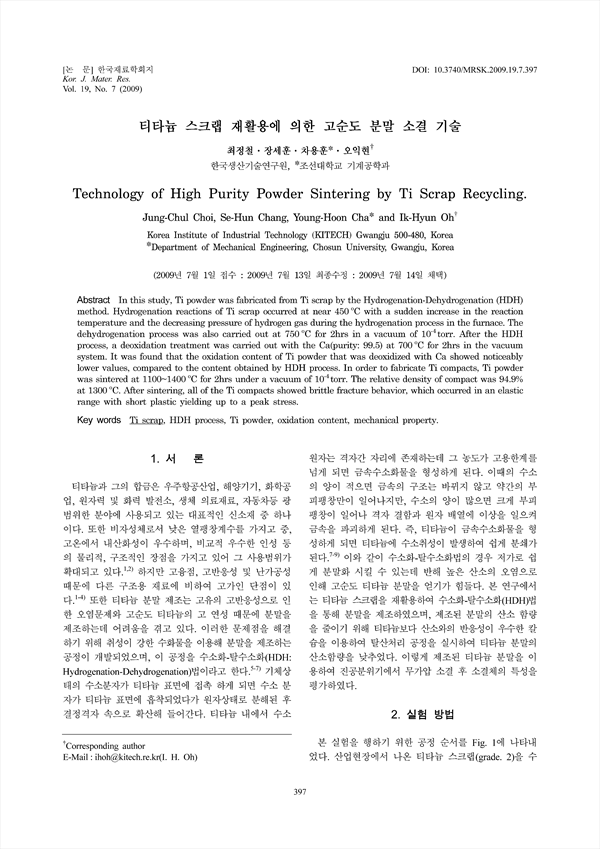

In this study, Ti powder was fabricated from Ti scrap by the Hydrogenation-Dehydrogenation (HDH)method. Hydrogenation reactions of Ti scrap occurred at near 450oC with a sudden increase in the reactiontemperature and the decreasing pressure of hydrogen gas during the hydrogenation process in the furnace. Thedehydrogenation process was also carried out at 750oC for 2hrs in a vacuum of 10-4torr. After the HDHprocess, a deoxidation treatment was carried out with the Ca(purity: 99.5) at 700oC for 2hrs in the vacuumsystem. It was found that the oxidation content of Ti powder that was deoxidized with Ca showed noticeablylower values, compared to the content obtained by HDH process. In order to fabricate Ti compacts, Ti powderwas sintered at 1100~1400oC for 2hrs under a vacuum of 10-4torr. The relative density of compact was 94.9%at 1300oC. After sintering, all of the Ti compacts showed brittle fracture behavior, which occurred in an elasticrange with short plastic yielding up to a peak stress.
