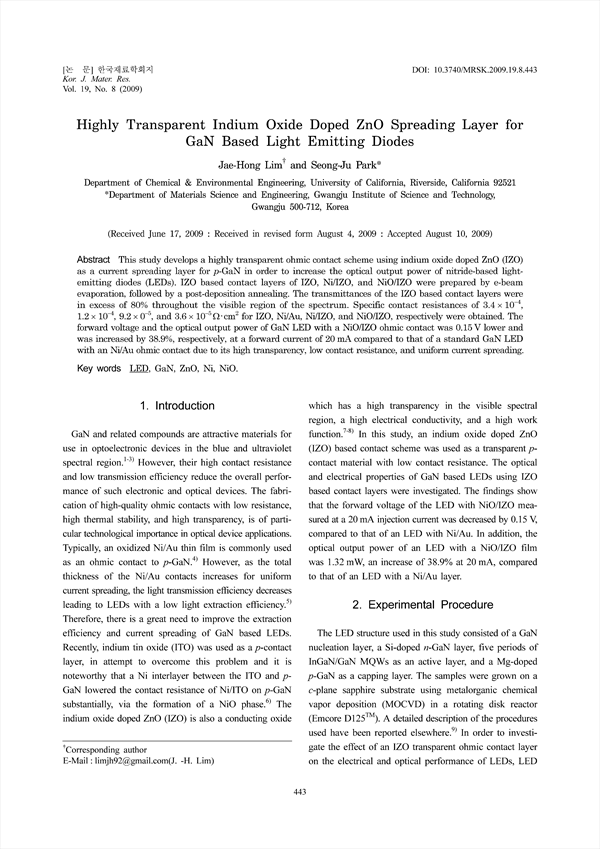

This study develops a highly transparent ohmic contact scheme using indium oxide doped ZnO (IZO)as a current spreading layer for p-GaN in order to increase the optical output power of nitride-based light-emitting diodes (LEDs). IZO based contact layers of IZO, Ni/IZO, and NiO/IZO were prepared by e-beamevaporation, followed by a post-deposition annealing. The transmittances of the IZO based contact layers werein excess of 80% throughout the visible region of the spectrum. Specific contact resistances of 3.4×10−4,1.2×10−4, 9.2×0−5, and 3.6×10−5Ω·cm2 for IZO, Ni/Au, Ni/IZO, and NiO/IZO, respectively were obtained. Theforward voltage and the optical output power of GaN LED with a NiO/IZO ohmic contact was 0.15V lower andwas increased by 38.9%, respectively, at a forward current of 20mA compared to that of a standard GaN LEDwith an Ni/Au ohmic contact due to its high transparency, low contact resistance, and uniform current spreading.

• Lim, Jae-Hong
• Park, Seong-Ju | Park, Seong-Ju
