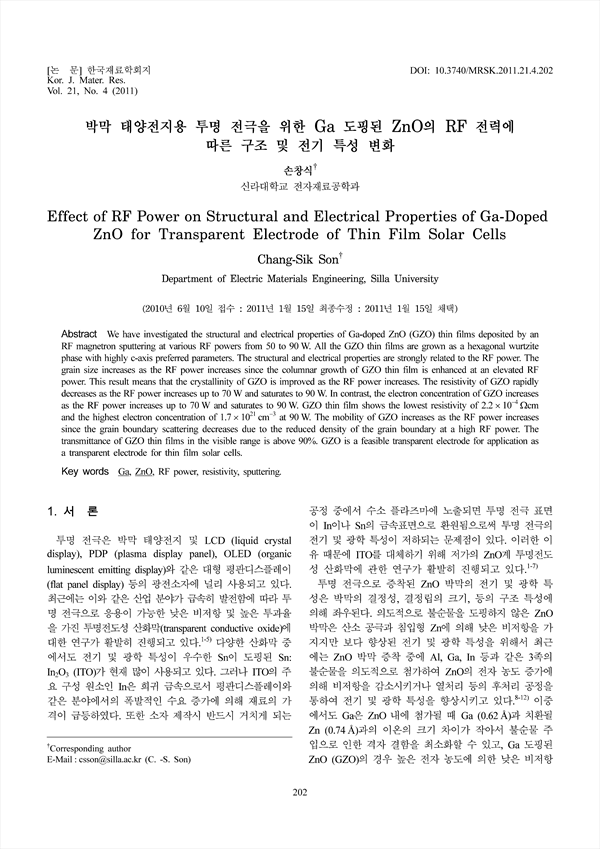

We have investigated the structural and electrical properties of Ga-doped ZnO (GZO) thin films deposited by anRF magnetron sputtering at various RF powers from 50 to 90W. All the GZO thin films are grown as a hexagonal wurtzitephase with highly c-axis preferred parameters. The structural and electrical properties are strongly related to the RF power. Thegrain size increases as the RF power increases since the columnar growth of GZO thin film is enhanced at an elevated RFpower. This result means that the crystallinity of GZO is improved as the RF power increases. The resistivity of GZO rapidlydecreases as the RF power increases up to 70W and saturates to 90W. In contrast, the electron concentration of GZO increasesas the RF power increases up to 70W and saturates to 90W. GZO thin film shows the lowest resistivity of 2.2×10−4Ωcmand the highest electron concentration of 1.7×1021cm−3 at 90W. The mobility of GZO increases as the RF power increasessince the grain boundary scattering decreases due to the reduced density of the grain boundary at a high RF power. Thetransmittance of GZO thin films in the visible range is above 90%. GZO is a feasible transparent electrode for application asa transparent electrode for thin film solar cells.

• 손창식 | Son, Chang-Sik
