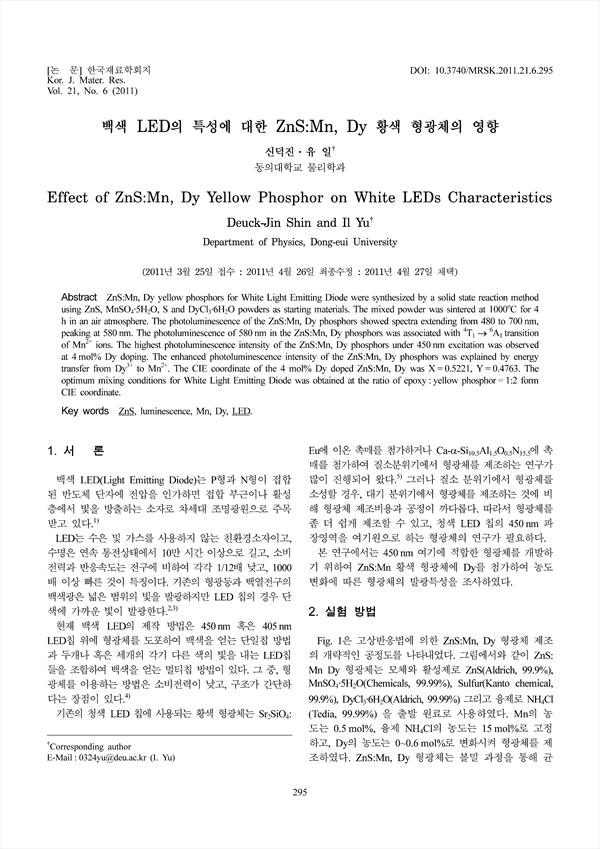

ZnS:Mn, Dy yellow phosphors for White Light Emitting Diode were synthesized by a solid state reaction methodusing ZnS, MnSO4·5H2O, S and DyCl3·6H2O powders as starting materials. The mixed powder was sintered at 1000oC for 4h in an air atmosphere. The photoluminescence of the ZnS:Mn, Dy phosphors showed spectra extending from 480 to 700nm,peaking at 580nm. The photoluminescence of 580nm in the ZnS:Mn, Dy phosphors was associated with 4T1→6A1 transitionof Mn2+ ions. The highest photoluminescence intensity of the ZnS:Mn, Dy phosphors under 450nm excitation was observedat 4mol% Dy doping. The enhanced photoluminescence intensity of the ZnS:Mn, Dy phosphors was explained by energytransfer from Dy3+ to Mn2+. The CIE coordinate of the 4 mol% Dy doped ZnS:Mn, Dy was X=0.5221, Y=0.4763. Theoptimum mixing conditions for White Light Emitting Diode was obtained at the ratio of epoxy:yellow phosphor=1:2 formCIE coordinate.

• 신덕진 | Shin, Deuck-Jin
• 유일 | 유일
