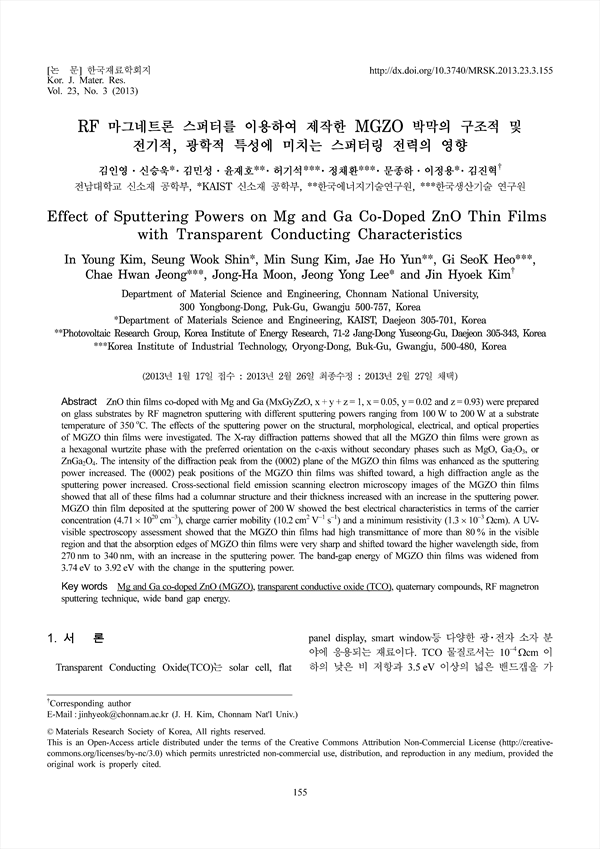

RF 마그네트론 스퍼터를 이용하여 제작한 MGZO 박막의 구조적 및 전기적, 광학적 특성에 미치는 스퍼터링 전력의 영향 KCI 등재 SCOPUS

Effect of Sputtering Powers on Mg and Ga Co-Doped ZnO Thin Films with Transparent Conducting Characteristics

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/297426
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국재료학회지 (Korean Journal of Materials Research)
한국재료학회 (Materials Research Society Of Korea)
초록

ZnO thin films co-doped with Mg and Ga (MxGyZzO, x+y+z=1, x=0.05, y=0.02 and z=0.93) were preparedon glass substrates by RF magnetron sputtering with different sputtering powers ranging from 100W to 200W at a substratetemperature of 350oC. The effects of the sputtering power on the structural, morphological, electrical, and optical propertiesof MGZO thin films were investigated. The X-ray diffraction patterns showed that all the MGZO thin films were grown asa hexagonal wurtzite phase with the preferred orientation on the c-axis without secondary phases such as MgO, Ga2O3, orZnGa2O4. The intensity of the diffraction peak from the (0002) plane of the MGZO thin films was enhanced as the sputteringpower increased. The (0002) peak positions of the MGZO thin films was shifted toward, a high diffraction angle as thesputtering power increased. Cross-sectional field emission scanning electron microscopy images of the MGZO thin filmsshowed that all of these films had a columnar structure and their thickness increased with an increase in the sputtering power.MGZO thin film deposited at the sputtering power of 200W showed the best electrical characteristics in terms of the carrierconcentration (4.71×1020cm−3), charge carrier mobility (10.2cm2V−1s−1) and a minimum resistivity (1.3×10−3Ωcm). A UV-visible spectroscopy assessment showed that the MGZO thin films had high transmittance of more than 80% in the visibleregion and that the absorption edges of MGZO thin films were very sharp and shifted toward the higher wavelength side, from270nm to 340nm, with an increase in the sputtering power. The band-gap energy of MGZO thin films was widened from3.74eV to 3.92eV with the change in the sputtering power.

저자
  • 김인영(전남대학교 신소재 공학부) | Kim, In Young
  • 신승욱( KAIST 신소재 공학부) | 신승욱
  • 김민성( 전남대학교 신소재 공학부) | 김민성
  • 윤재호( 한국에너지기술연구원) | 윤재호
  • 허기석( 한국생산기술 연구원) | 허기석
  • 정채환( 한국생산기술 연구원) | 정채환
  • 문종하( 전남대학교 신소재 공학부) | 문종하
  • 이정용( KAIST 신소재 공학부) | 이정용
  • 김진혁( 전남대학교 신소재 공학부) | 김진혁
