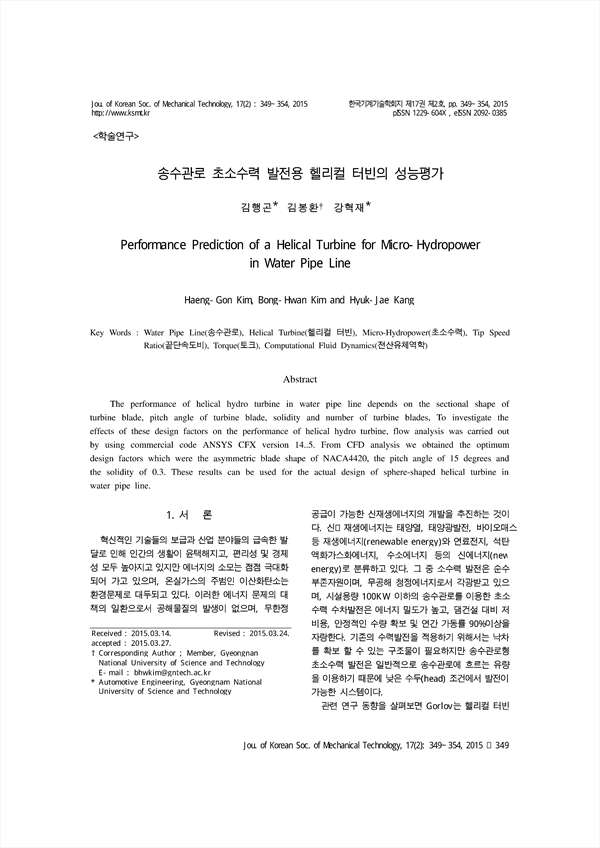

송수관로 초소수력 발전용 헬리컬 터빈의 성능평가

김행곤; 김봉환; 강혁재

논문 상세보기

송수관로 초소수력 발전용 헬리컬 터빈의 성능평가 KCI 등재

Performance Prediction of a Helical Turbine for Micro-Hydropower in Water Pipe Line

김행곤, 김봉환, 강혁재

언어KOR
URLhttps://db.koreascholar.com/Article/Detail/298863

구독 기관 인증 시 무료 이용이 가능합니다. 4,000원

한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)

제17권 제2호 (2015.04)
pp.349-354

한국기계기술학회 (Korean Society of Mechanical Technology)

초록

The performance of helical hydro turbine in water pipe line depends on the sectional shape of turbine blade, pitch angle of turbine blade, solidity and number of turbine blades, To investigate the effects of these design factors on the performance of helical hydro turbine, flow analysis was carried out by using commercial code ANSYS CFX version 14..5. From CFD analysis we obtained the optimum design factors which were the asymmetric blade shape of NACA4420, the pitch angle of 15 degrees and the solidity of 0.3. These results can be used for the actual design of sphere-shaped helical turbine in water pipe line.

키워드

Water Pipe Line 송수관로 Helical Turbine 헬리컬 터빈 Micro-Hydropower 초소수력 Tip Speed Ratio 끝단속도비 Torque 토크 Computational Fluid Dynamics 전산유체역학

1. 서 론
2. 해석 모델 및 수치해석
  2.1 터빈 날개 및 설계변수
  2.2 격자생성 및 경계조건
3. 해석결과 및 고찰
  3.1 피치각의 영향
  3.2 솔리디티의 영향
  3.3 날개 수의 영향
  3.4 TSR 변화에 따른 헬리컬 터빈의 성능특성
4. 결 론
후 기
References

저자

김행곤(Automotive Engineering, Gyeongnam National university of Science and Technology) | Haeng-Gon Kim
김봉환(Member, Gyeongnam National University of Science and Technology) | Bong-Hwan Kim Corresponding author
강혁재(Automotive Engineering, Gyeongnam National university of Science and Technology) | Hyuk-Jae Kang
