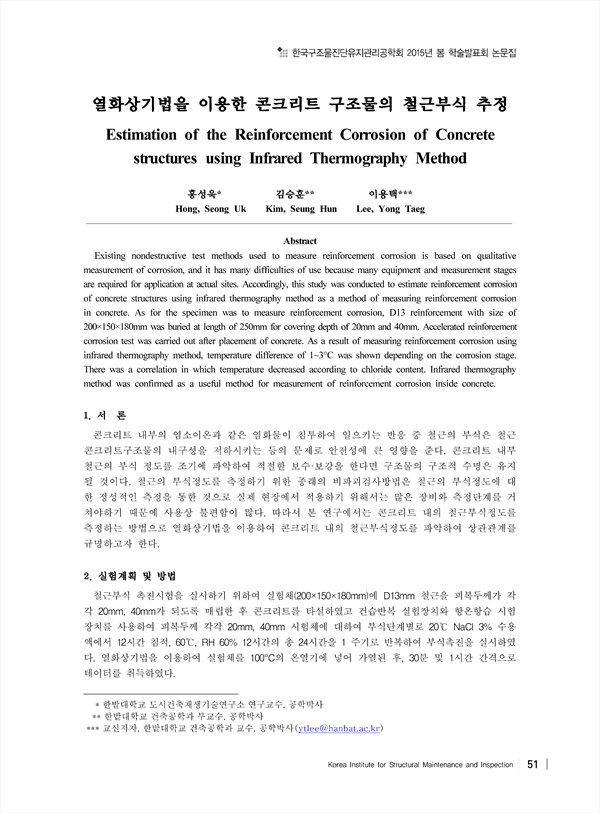

Existing nondestructive test methods used to measure reinforcement corrosion is based on qualitative measurement of corrosion, and it has many difficulties of use because many equipment and measurement stages are required for application at actual sites. Accordingly, this study was conducted to estimate reinforcement corrosion of concrete structures using infrared thermography method as a method of measuring reinforcement corrosion in concrete. As for the specimen was to measure reinforcement corrosion, D13 reinforcement with size of 200×150×180mm was buried at length of 250mm for covering depth of 20mm and 40mm. Accelerated reinforcement corrosion test was carried out after placement of concrete. As a result of measuring reinforcement corrosion using infrared thermography method, temperature difference of 1~3°C was shown depending on the corrosion stage. There was a correlation in which temperature decreased according to chloride content. Infrared thermography method was confirmed as a useful method for measurement of reinforcement corrosion inside concrete.
