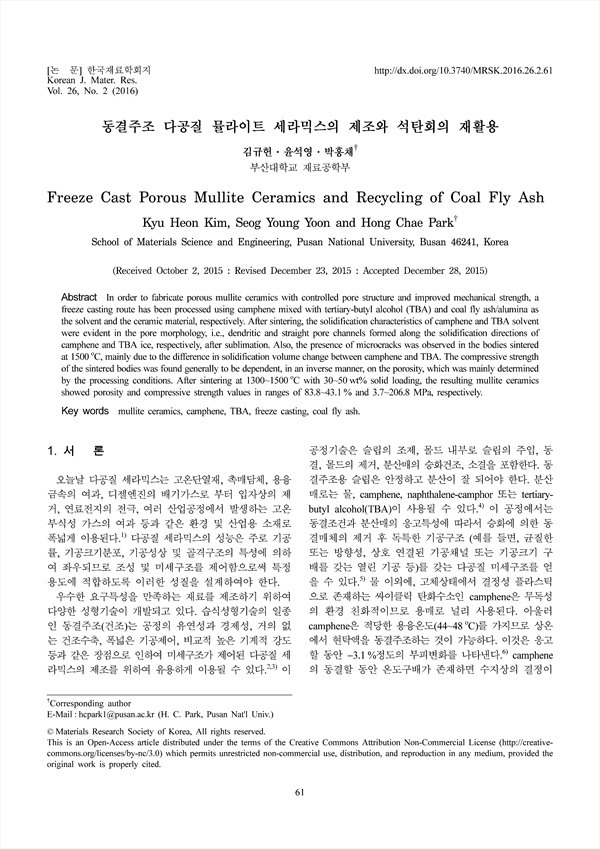

In order to fabricate porous mullite ceramics with controlled pore structure and improved mechanical strength, a freeze casting route has been processed using camphene mixed with tertiary-butyl alcohol (TBA) and coal fly ash/alumina as the solvent and the ceramic material, respectively. After sintering, the solidification characteristics of camphene and TBA solvent were evident in the pore morphology, i.e., dendritic and straight pore channels formed along the solidification directions of camphene and TBA ice, respectively, after sublimation. Also, the presence of microcracks was observed in the bodies sintered at 1500 oC, mainly due to the difference in solidification volume change between camphene and TBA. The compressive strength of the sintered bodies was found generally to be dependent, in an inverse manner, on the porosity, which was mainly determined by the processing conditions. After sintering at 1300~1500 oC with 30~50 wt% solid loading, the resulting mullite ceramics showed porosity and compressive strength values in ranges of 83.8~43.1% and 3.7~206.8 MPa, respectively.

1. 서 론
2. 실험 방법
3. 결과 및 고찰
4. 결 론
Acknowledgement
References

• 김규헌(부산대학교 재료공학부) | Kyu Heon Kim
• 윤석영(부산대학교 재료공학부) | Seog Young Yoon
• 박홍채(부산대학교 재료공학부) | Hong Chae Park Corresponding author
