pp.298-301

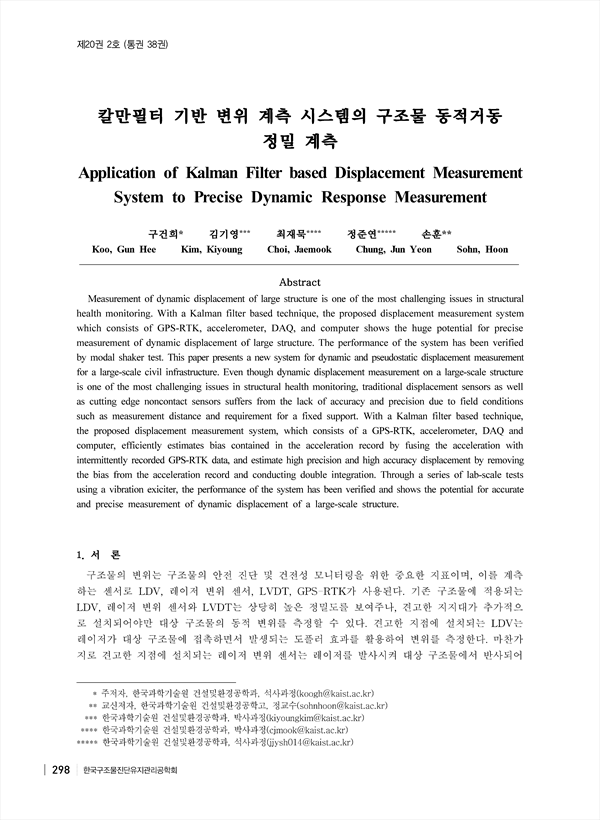

Measurement of dynamic displacement of large structure is one of the most challenging issues in structural health monitoring. With a Kalman filter based technique, the proposed displacement measurement system which consists of GPS-RTK, accelerometer, DAQ, and computer shows the huge potential for precise measurement of dynamic displacement of large structure. The performance of the system has been verified by modal shaker test. This paper presents a new system for dynamic and pseudostatic displacement measurement for a large-scale civil infrastructure. Even though dynamic displacement measurement on a large-scale structure is one of the most challenging issues in structural health monitoring, traditional displacement sensors as well as cutting edge noncontact sensors suffers from the lack of accuracy and precision due to field conditions such as measurement distance and requirement for a fixed support. With a Kalman filter based technique, the proposed displacement measurement system, which consists of a GPS-RTK, accelerometer, DAQ and computer, efficiently estimates bias contained in the acceleration record by fusing the acceleration with intermittently recorded GPS-RTK data, and estimate high precision and high accuracy displacement by removing the bias from the acceleration record and conducting double integration. Through a series of lab-scale tests using a vibration exiciter, the performance of the system has been verified and shows the potential for accurate and precise measurement of dynamic displacement of a large-scale structure.
