pp.89-93

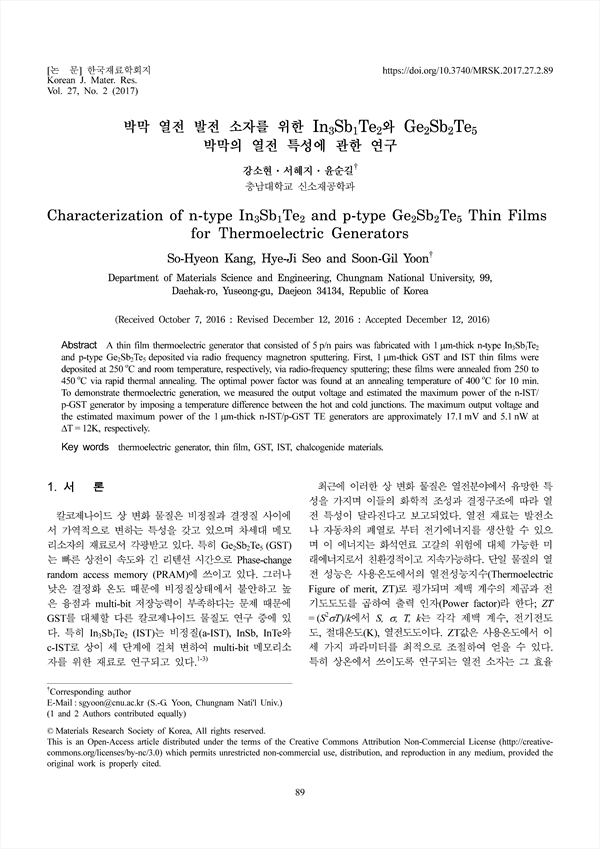

A thin film thermoelectric generator that consisted of 5 p/n pairs was fabricated with 1 μm-thick n-type In3Sb1Te2 and p-type Ge2Sb2Te5 deposited via radio frequency magnetron sputtering. First, 1 μm-thick GST and IST thin films were deposited at 250 oC and room temperature, respectively, via radio-frequency sputtering; these films were annealed from 250 to 450 oC via rapid thermal annealing. The optimal power factor was found at an annealing temperature of 400 oC for 10 min. To demonstrate thermoelectric generation, we measured the output voltage and estimated the maximum power of the n-IST/ p-GST generator by imposing a temperature difference between the hot and cold junctions. The maximum output voltage and the estimated maximum power of the 1 μm-thick n-IST/p-GST TE generators are approximately 17.1 mV and 5.1 nW at ΔT = 12K, respectively.
