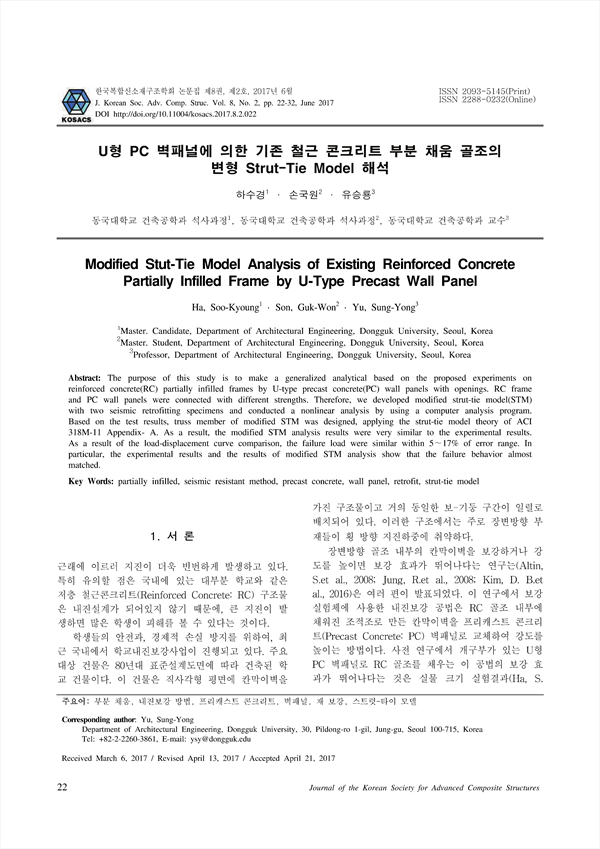

The purpose of this study is to make a generalized analytical based on the proposed experiments on reinforced concrete(RC) partially infilled frames by U-type precast concrete(PC) wall panels with openings. RC frame and PC wall panels were connected with different strengths. Therefore, we developed modified strut-tie model(STM) with two seismic retrofitting specimens and conducted a nonlinear analysis by using a computer analysis program. Based on the test results, truss member of modified STM was designed, applying the strut-tie model theory of ACI 318M-11 Appendix- A. As a result, the modified STM analysis results were very similar to the experimental results. As a result of the load-displacement curve comparison, the failure load were similar within 5∼17% of error range. In particular, the experimental results and the results of modified STM analysis show that the failure behavior almost matched.

1. 서 론
 2. 연구 방법
 3. 실험체와 사전연구 결과
  3.1 실험체
  3.2 사용한 재료
  3.3 사전연구 결과
 4. 모델링 과정
  4.1 변형 STM 설계
  4.2 재료 모델링
  4.3 해석모델
  4.4 경계 조건
  4.5 하중 조건
 5. 해석결과와 실험결과 비교
  5.1 하중-변위 곡선 비교
  5.2 파괴거동 비교
 6. 결 론
 ACKNOWLEDGMENT
 REFERENCES

• 하수경(동국대학교 건축공학과 석사과정) | Ha Soo-Kyoung
• 손국원(동국대학교 건축공학과 석사과정) | Son Guk-Won
• 유승룡(동국대학교 건축공학과 교수) | Yu Sung-Yong
