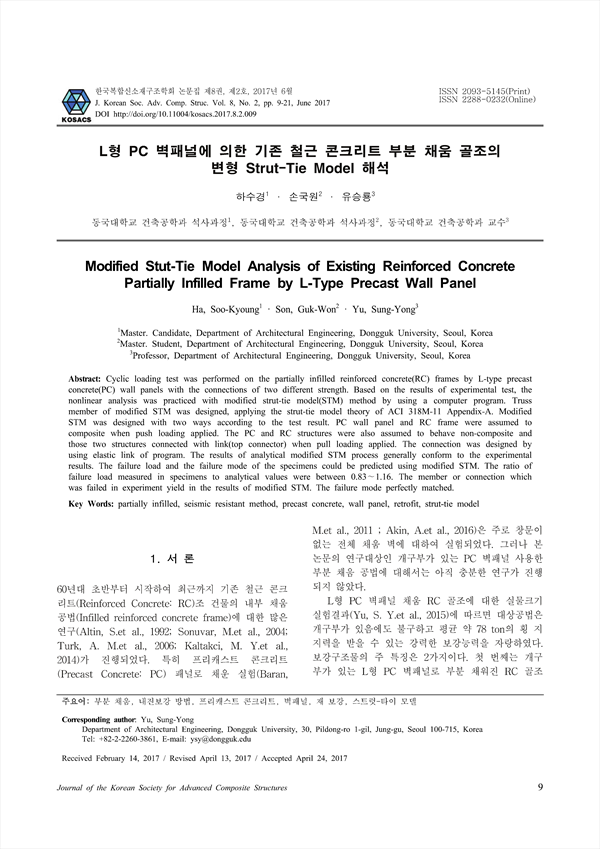

Cyclic loading test was performed on the partially infilled reinforced concrete(RC) frames by L-type precast concrete(PC) wall panels with the connections of two different strength. Based on the results of experimental test, the nonlinear analysis was practiced with modified strut-tie model(STM) method by using a computer program. Truss member of modified STM was designed, applying the strut-tie model theory of ACI 318M-11 Appendix-A. Modified STM was designed with two ways according to the test result. PC wall panel and RC frame were assumed to composite when push loading applied. The PC and RC structures were also assumed to behave non-composite and those two structures connected with link(top connector) when pull loading applied. The connection was designed by using elastic link of program. The results of analytical modified STM process generally conform to the experimental results. The failure load and the failure mode of the specimens could be predicted using modified STM. The ratio of failure load measured in specimens to analytical values were between 0.83∼1.16. The member or connection which was failed in experiment yield in the results of modified STM. The failure mode perfectly matched.

1. 서 론
 2. 연구 방법
 3. 실험체와 선행연구 결과
  3.1 실험체
  3.2 사용한 재료
  3.3 선행연구 결과
 4. 모델링 과정
  4.1 변형 STM 설계
  4.2 재료 모델링
  4.3 해석모델
  4.4 경계 조건
  4.5 하중 조건
 5. 해석결과와 실험결과 비교
  5.1 하중-변위 곡선 비교
  5.2 파괴거동 비교
 6. 결 론
 ACKNOWLEDGMENT
 REFERENCES

• 하수경(동국대학교 건축공학과 석사과정) | Ha Soo-Kyoung
• 손국원(동국대학교 건축공학과 석사과정) | Son Guk-Won
• 유승룡(동국대학교 건축공학과 교수) | Yu Sung-Yong
