pp.165-173

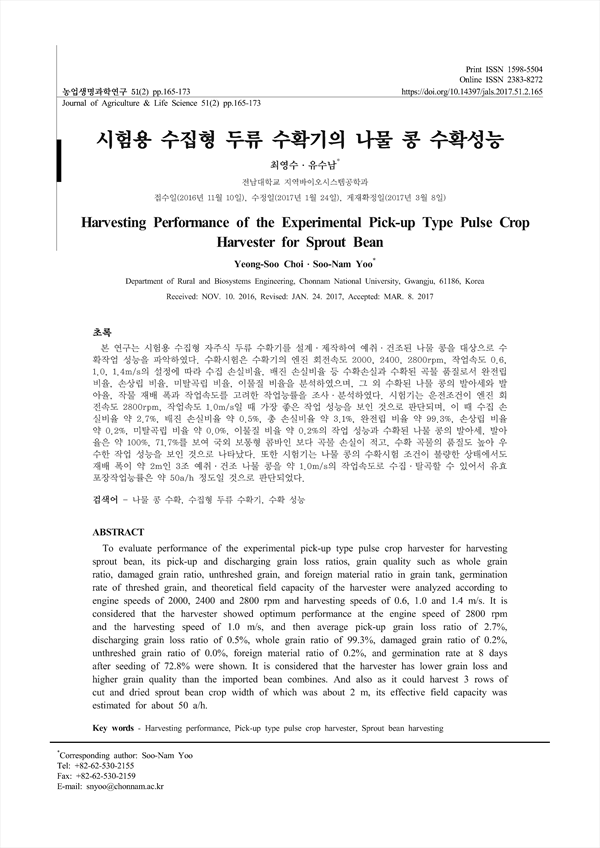

To evaluate performance of the experimental pick-up type pulse crop harvester for harvesting sprout bean, its pick-up and discharging grain loss ratios, grain quality such as whole grain ratio, damaged grain ratio, unthreshed grain, and foreign material ratio in grain tank, germination rate of threshed grain, and theoretical field capacity of the harvester were analyzed according to engine speeds of 2000, 2400 and 2800 rpm and harvesting speeds of 0.6, 1.0 and 1.4 m/s. It is considered that the harvester showed optimum performance at the engine speed of 2800 rpm and the harvesting speed of 1.0 m/s, and then average pick-up grain loss ratio of 2.7%, discharging grain loss ratio of 0.5%, whole grain ratio of 99.3%, damaged grain ratio of 0.2%, unthreshed grain ratio of 0.0%, foreign material ratio of 0.2%, and germination rate at 8 days after seeding of 72.8% were shown. It is considered that the harvester has lower grain loss and higher grain quality than the imported bean combines. And also as it could harvest 3 rows of cut and dried sprout bean crop width of which was about 2 m, its effective field capacity was estimated for about 50 a/h.
