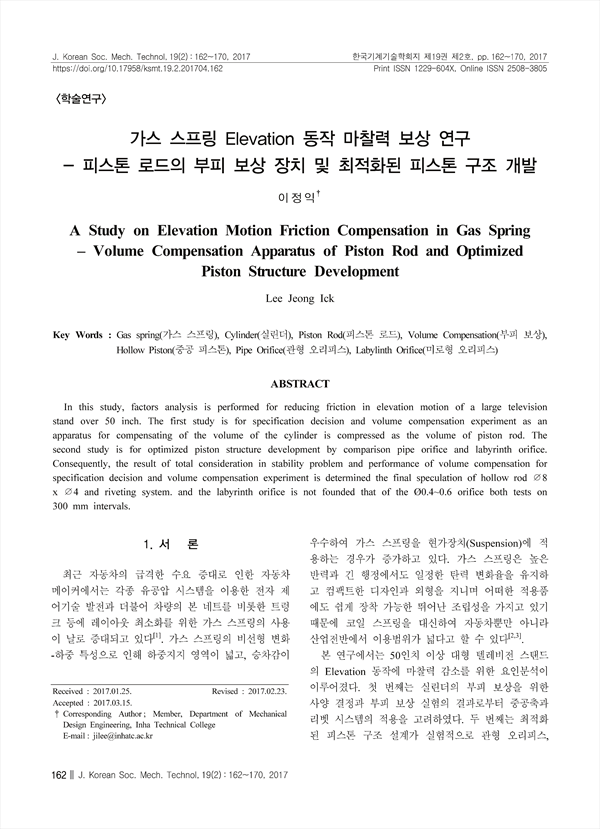

In this study, factors analysis is performed for reducing friction in elevation motion of a large television stand over 50 inch. The first study is for specification decision and volume compensation experiment as an apparatus for compensating of the volume of the cylinder is compressed as the volume of piston rod. The second study is for optimized piston structure development by comparison pipe orifice and labyrinth orifice. Consequently, the result of total consideration in stability problem and performance of volume compensation for specification decision and volume compensation experiment is determined the final speculation of hollow rod ∅8 x ∅4 and riveting system. and the labyrinth orifice is not founded that of the Ø0.4~0.6 orifice both tests on 300 mm intervals.

• 이정익(Department of Mechanical Design Engineering, Inha Technical College) | Lee Jeong Ick Corresponding Author
