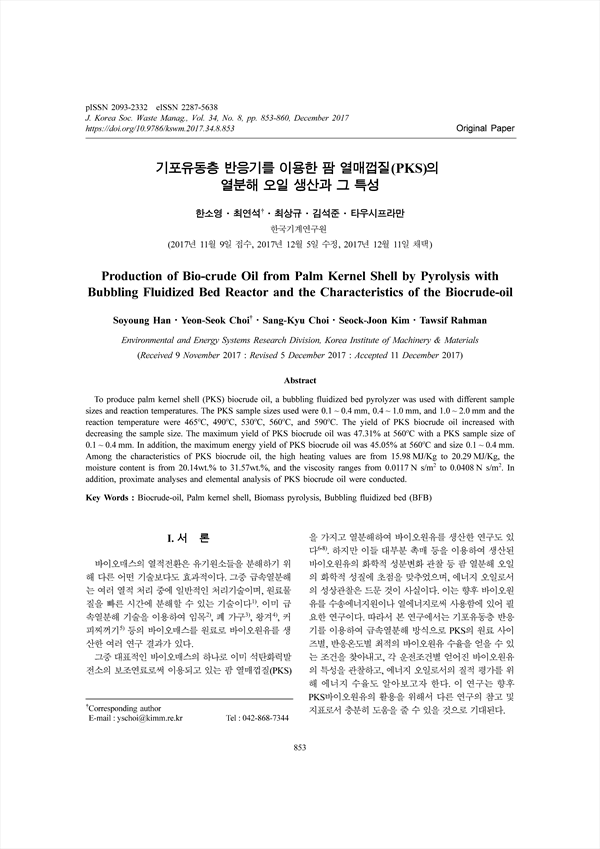

To produce palm kernel shell (PKS) biocrude oil, a bubbling fluidized bed pyrolyzer was used with different sample sizes and reaction temperatures. The PKS sample sizes used were 0.1 ~ 0.4 mm, 0.4 ~ 1.0 mm, and 1.0 ~ 2.0 mm and the reaction temperature were 465oC, 490oC, 530oC, 560oC, and 590oC. The yield of PKS biocrude oil increased with decreasing the sample size. The maximum yield of PKS biocrude oil was 47.31% at 560oC with a PKS sample size of 0.1 ~ 0.4 mm. In addition, the maximum energy yield of PKS biocrude oil was 45.05% at 560oC and size 0.1 ~ 0.4 mm. Among the characteristics of PKS biocrude oil, the high heating values are from 15.98 MJ/Kg to 20.29 MJ/Kg, the moisture content is from 20.14wt.% to 31.57wt.%, and the viscosity ranges from 0.0117 N s/m2 to 0.0408 N s/m2. In addition, proximate analyses and elemental analysis of PKS biocrude oil were conducted.
