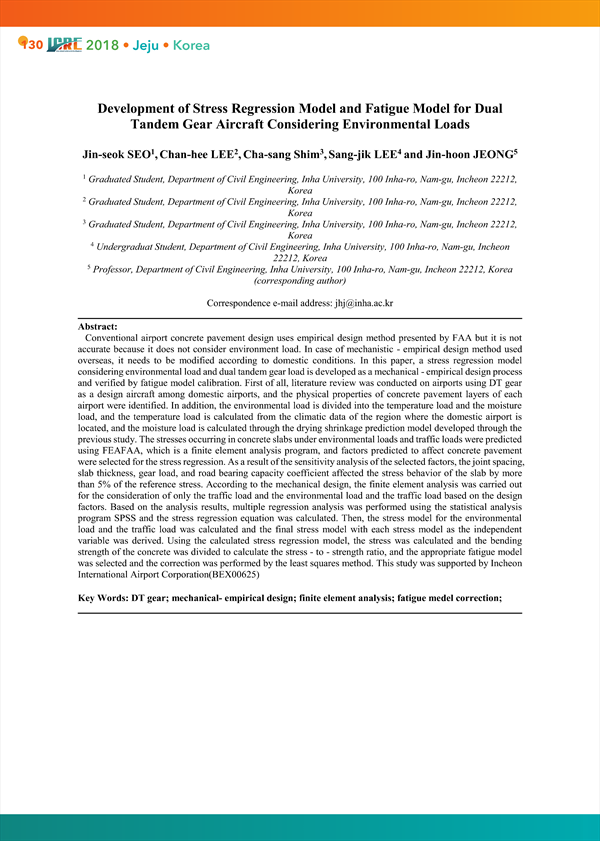

Conventional airport concrete pavement design uses empirical design method presented by FAA but it is not accurate because it does not consider environment load. In case of mechanistic - empirical design method used overseas, it needs to be modified according to domestic conditions. In this paper, a stress regression model considering environmental load and dual tandem gear load is developed as a mechanical - empirical design process and verified by fatigue model calibration. First of all, literature review was conducted on airports using DT gear as a design aircraft among domestic airports, and the physical properties of concrete pavement layers of each airport were identified. In addition, the environmental load is divided into the temperature load and the moisture load, and the temperature load is calculated from the climatic data of the region where the domestic airport is located, and the moisture load is calculated through the drying shrinkage prediction model developed through the previous study. The stresses occurring in concrete slabs under environmental loads and traffic loads were predicted using FEAFAA, which is a finite element analysis program, and factors predicted to affect concrete pavement were selected for the stress regression.As a result of the sensitivity analysis of the selected factors, the joint spacing, slab thickness, gear load, and road bearing capacity coefficient affected the stress behavior of the slab by more than 5% of the reference stress.According to the mechanical design, the finite element analysis was carried out for the consideration of only the traffic load and the environmental load and the traffic load based on the design factors. Based on the analysis results, multiple regression analysis was performed using the statistical analysis program SPSS and the stress regression equation was calculated. Then, the stress model for the environmental load and the traffic load was calculated and the final stress model with each stress model as the independent variable was derived. Using the calculated stress regression model, the stress was calculated and the bending strength of the concrete was divided to calculate the stress - to - strength ratio, and the appropriate fatigue model was selected and the correction was performed by the least squares method. This study was supported by Incheon International Airport Corporation(BEX00625)

• Jin-seok SEO(Graduated Student, Department of Civil Engineering, Inha University)
• Chan-hee LEE(Graduated Student, Department of Civil Engineering, Inha University)
• Cha-sang Shim(Graduated Student, Department of Civil Engineering, Inha University)
• Sang-jik LEE(Undergraduat Student, Department of Civil Engineering, Inha University)
• Jin-hoon JEONG(Professor, Department of Civil Engineering, Inha University)
