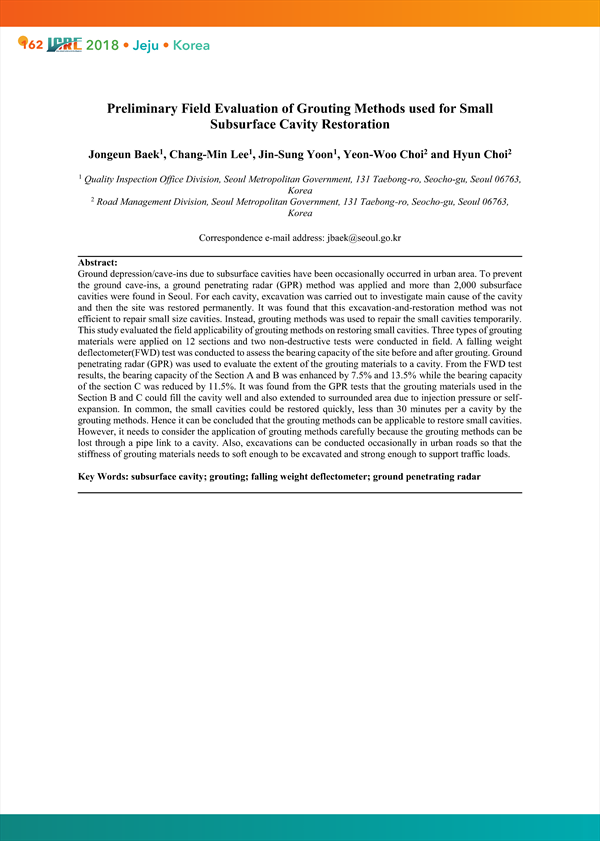

Preliminary Field Evaluation of Grouting Methods used for Small Subsurface Cavity Restoration
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/348325
Ground depression/cave-ins due to subsurface cavities have been occasionally occurred in urban area. To prevent the ground cave-ins, a ground penetrating radar (GPR) method was applied and more than 2,000 subsurface cavities were found in Seoul. For each cavity, excavation was carried out to investigate main cause of the cavity and then the site was restored permanently. It was found that this excavation-and-restoration method was not efficient to repair small size cavities. Instead, grouting methods was used to repair the small cavities temporarily. This study evaluated the field applicability of grouting methods on restoring small cavities. Three types of grouting materials were applied on 12 sections and two non-destructive tests were conducted in field. A falling weight deflectometer(FWD) test was conducted to assess the bearing capacity of the site before and after grouting. Ground penetrating radar (GPR) was used to evaluate the extent of the grouting materials to a cavity. From the FWD test results, the bearing capacity of the Section A and B was enhanced by 7.5% and 13.5% while the bearing capacity of the section C was reduced by 11.5%. It was found from the GPR tests that the grouting materials used in the Section B and C could fill the cavity well and also extended to surrounded area due to injection pressure or selfexpansion. In common, the small cavities could be restored quickly, less than 30 minutes per a cavity by the grouting methods. Hence it can be concluded that the grouting methods can be applicable to restore small cavities. However, it needs to consider the application of grouting methods carefully because the grouting methods can be lost through a pipe link to a cavity. Also, excavations can be conducted occasionally in urban roads so that the stiffness of grouting materials needs to soft enough to be excavated and strong enough to support traffic loads.
