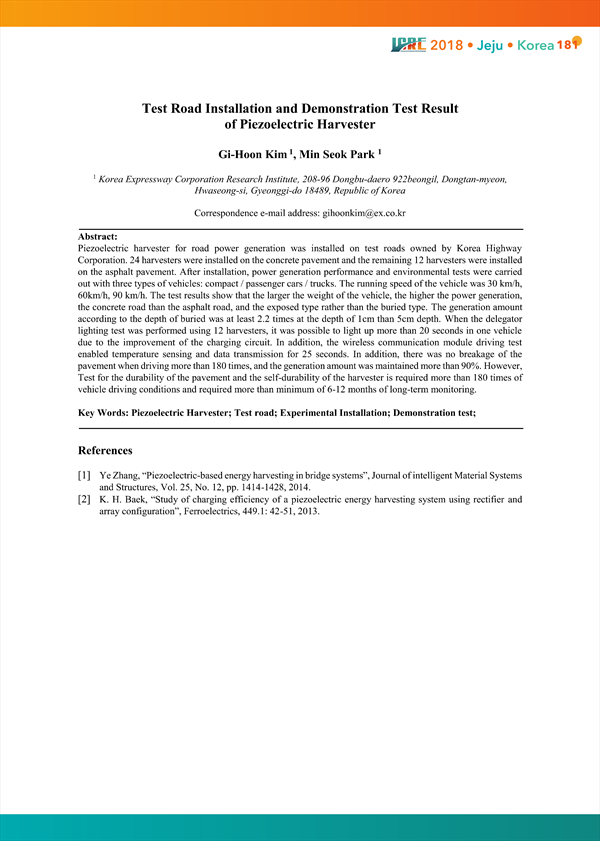

Piezoelectric harvester for road power generation was installed on test roads owned by Korea Highway Corporation. 24 harvesters were installed on the concrete pavement and the remaining 12 harvesters were installed on the asphalt pavement. After installation, power generation performance and environmental tests were carried out with three types of vehicles: compact / passenger cars / trucks. The running speed of the vehicle was 30 km/h, 60km/h, 90 km/h. The test results show that the larger the weight of the vehicle, the higher the power generation, the concrete road than the asphalt road, and the exposed type rather than the buried type. The generation amount according to the depth of buried was at least 2.2 times at the depth of 1cm than 5cm depth. When the delegator lighting test was performed using 12 harvesters, it was possible to light up more than 20 seconds in one vehicle due to the improvement of the charging circuit. In addition, the wireless communication module driving test enabled temperature sensing and data transmission for 25 seconds. In addition, there was no breakage of the pavement when driving more than 180 times, and the generation amount was maintained more than 90%. However, Test for the durability of the pavement and the self-durability of the harvester is required more than 180 times of vehicle driving conditions and required more than minimum of 6-12 months of long-term monitoring.

• Gi-Hoon Kim(Korea Expressway Corporation Research Institute)
• Min Seok Park(Korea Expressway Corporation Research Institute)
