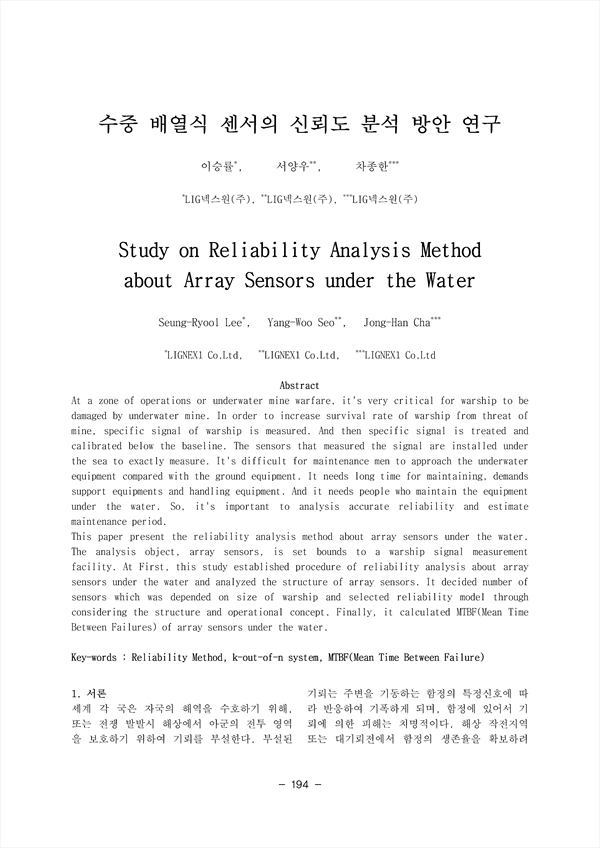

At a zone of operations or underwater mine warfare, it's very critical for warship to be damaged by underwater mine. In order to increase survival rate of warship from threat of mine, specific signal of warship is measured. And then specific signal is treated and calibrated below the baseline. The sensors that measured the signal are installed under the sea to exactly measure. It's difficult for maintenance men to approach the underwater equipment compared with the ground equipment. It needs long time for maintaining, demands support equipments and handling equipment. And it needs people who maintain the equipment under the water. So, it's important to analysis accurate reliability and estimate maintenance period.
This paper present the reliability analysis method about array sensors under the water. The analysis object, array sensors, is set bounds to a warship signal measurement facility. At First, this study established procedure of reliability analysis about array sensors under the water and analyzed the structure of array sensors. It decided number of sensors which was depended on size of warship and selected reliability model through considering the structure and operational concept. Finally, it calculated MTBF(Mean Time Between Failures) of array sensors under the water.

Abstract
 1. 서론
 2. 본론
  2.1. 수중 배열식 센서의 이해
  2.2. 수중 배열식 센서의 고장 정의
  2.3. 수중 배열식 센서 신뢰도 분석 프로세스
  2.4. 수중 배열식 센서의 구조 분석
  2.5. 함정별 유효센서 소요 식별
  2.5. MTBF를 구하기 위한 신뢰도 모델 선정
  2.6. 운용개념을 고려한 모델링 요소 산출
  2.7. 수중 배열식 센서의 신뢰도 산출
 3. 결론
 3. 참고 문헌

• 이승률(LIG넥스원(주)) | Seung-Ryool Lee
• 서양우(LIG넥스원(주)) | Yang-Woo Seo
• 차종한(LIG넥스원(주)) | Jong-Han Cha
